The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name C77-2 Site Name C77-2
Latitude 47.02729 Longitude -110.34235
Geomethod NAV-GPS Datum NAD83
Elevation 5334 Township 15N
County JUDITH BASIN Range 11E
100K Quad BELT Section 28
24K Quad CAYUSE BASIN Quarter Section CC
Sample Taken YES
Sample Date 7/28/2015 Formation Name Tyler Formation (IPMt)
Sampler Name JAY GUNDERSON Sampler Notes YELLOW FERRUGINOUS BANDED & XBEDDED SS, FINE(UPPER)-MEDIUM(LOWER- 0.088-0.350MM), SUBROUNDED, VERY WELL SORTED, FRIABLE
Thickness 20 Extent 400
References
Sample Characteristics
Meets API Minimum Standards Minerology
YES QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
587.6 577
Material Notes

Sieving Results

Reported Sample Weight (g): 112

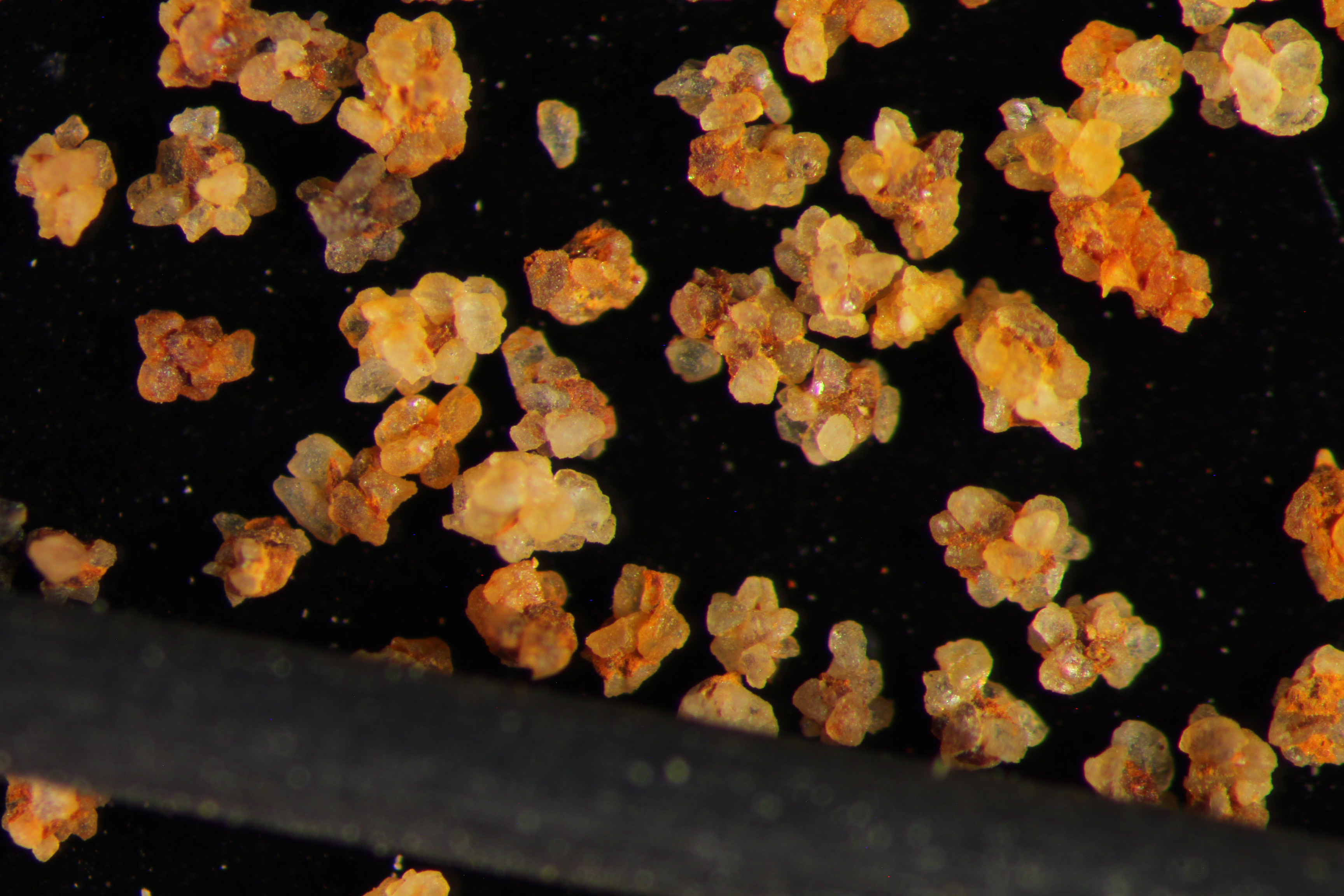

Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.4 339.7 5.3 4.73 %
20 306 311.3 5.3 4.73 %
30 296 300.6 4.6 4.11 %
40 285.6 289.3 3.7 3.30 %
50 264 267.3 3.3 2.95 %
60 260.5 262 1.5 1.34 %
70 284.3 286.1 1.8 1.61 %
140 253 333.9 80.9 72.23 %
pan 355.3 360.8 5.5 4.91 % No photo available
Totals 111.90 99.91 %
Error (Init/Final Mass) 0.09 %
Lab Results
Sphericity 0.64
Roundness 0.67
First Primary 70
Second Primary 140

Available Documents

    View document [C77_02_PRECRUSH1572016_1_5_10_49_24.pdf]
    View document [C77_02_SPHERE_ROUND1682016_1_5_10_49_52.pdf]
    View document [C77_02_5KCRUSH1692016_1_5_10_50_6.pdf]
