The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name SGVIR-05 Site Name SGVIR
Latitude 48.96786 Longitude -111.96738
Geomethod NAV-GPS Datum WGS84
Elevation 3616 Township 37N
County TOOLE Range 03W
100K Quad SWEET GRASS HILLS Section 14
24K Quad SUNBURST Quarter Section
Sample Taken YES
Sample Date 6/19/2015 Formation Name Virgelle Formation (Kvi)
Sampler Name NATALIA KRZYWOSZ AND IGOR KORCAIN Sampler Notes SPECKLED GRAY AND BORWN, HEAVILY BEDDED 1-2CM THICKNESS, VERY FRIABLE
Thickness ~20 FT Extent 100'S OF FT
References

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
924.3
Material Notes

Sieving Results

Reported Sample Weight (g): 120
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.4 337.3 2.9 2.42 %
20 305.8 308.1 2.3 1.92 %
30 295.9 298.8 2.9 2.42 %
40 285.5 289.9 4.4 3.67 %
50 263.8 269.6 5.8 4.83 %
60 260.2 264.8 4.6 3.83 %

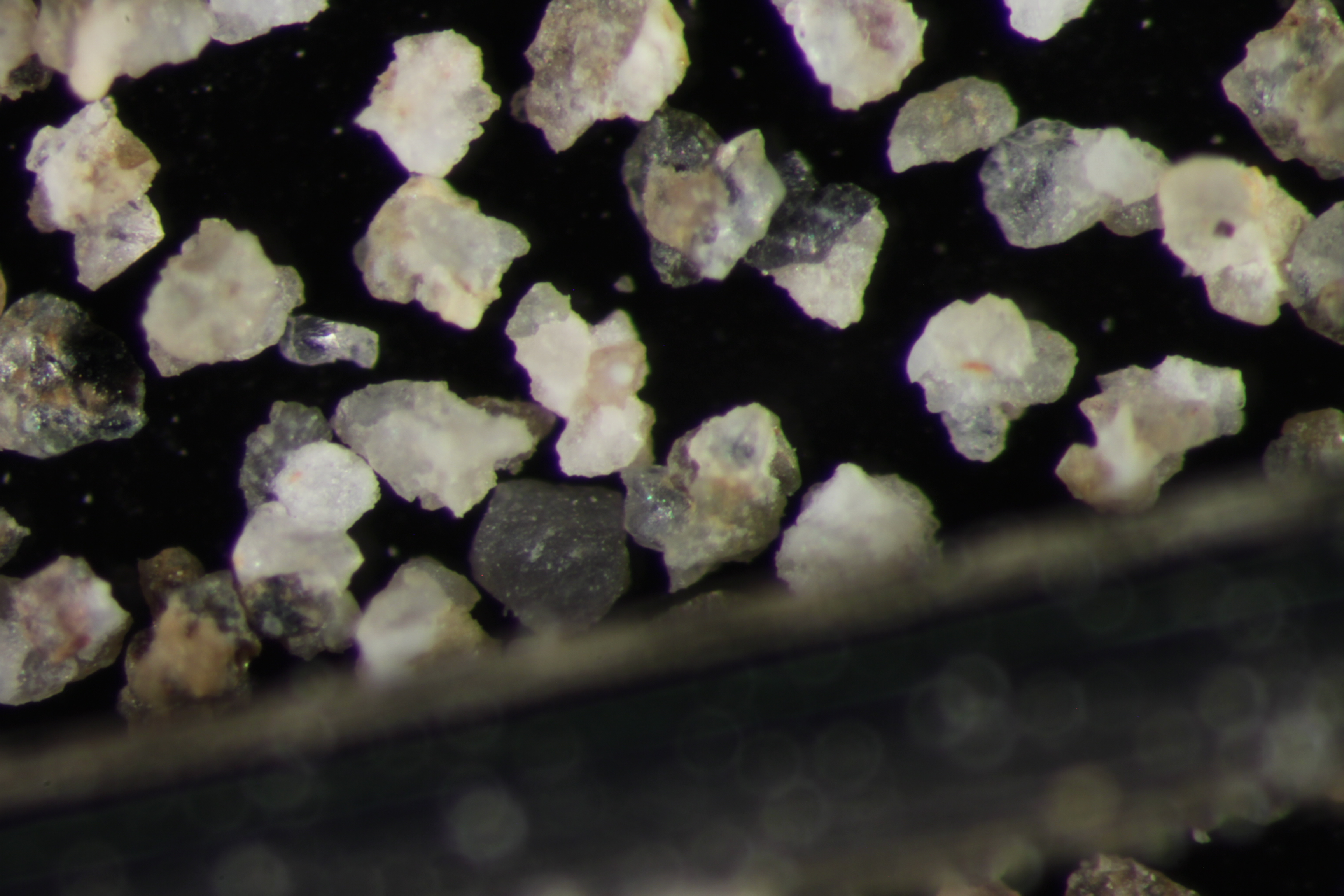

70 283.8 289.8 6 5.00 %

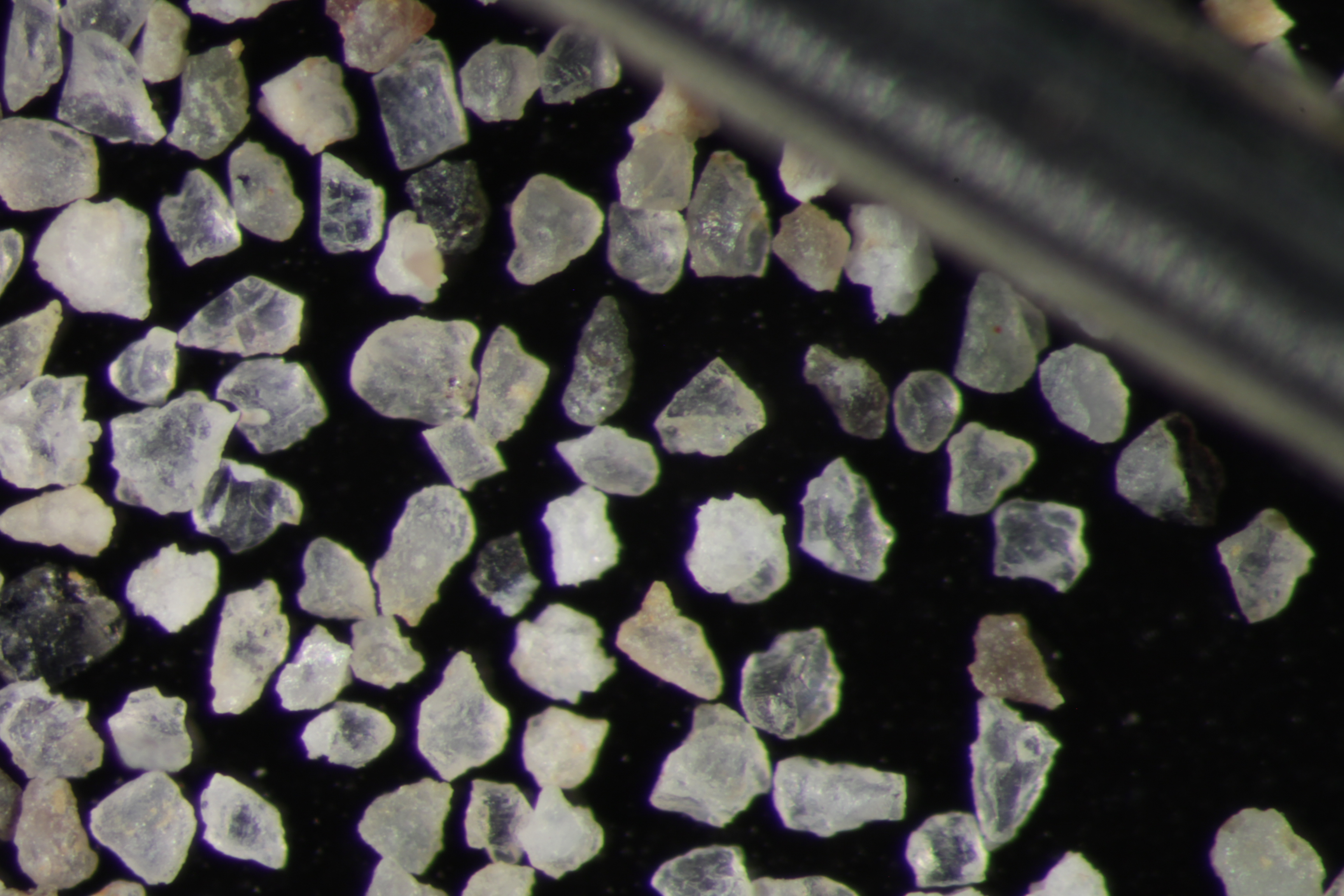

140 252.9 336.1 83.2 69.33 %
pan 355.2 363 7.8 6.50 % No photo available
Totals 119.90 99.92 %
Error (Init/Final Mass) 0.08 %
Lab Results
Sphericity 0.6
Roundness 0.45
First Primary 70
Second Primary 140

Available Documents

    View document [SGVIR_05_PRECRUSH0772015_8_17_9_58_57.pdf]
    View document [SGVIR_05_SPHERE_AND_ROUND0762015_8_17_10_2_44.pdf]
