The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name ENN-05-SV-14 Site Name ENN-SV-14
Latitude 45.068686 Longitude -111.867689
Geomethod NAV-GPS Datum WGS84
Elevation 8400 Township 09S
County MADISON Range 02W
100K Quad ENNIS Section 8
24K Quad BROOMTAIL RIDGE Quarter Section AA
Sample Taken YES
Sample Date 8/21/2014 Formation Name Shedhorn Formation (Psh)
Sampler Name SUSAN VUKE Sampler Notes GRAVELLY RANGE: ALONG DEVILS LANE DEVILS LANE PART OF RD 290
Thickness ~200 FT Extent TALUS-COVERED HILL
References
Sample Characteristics
Meets API Minimum Standards Minerology
YES QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
601.5 464.2
Material Notes
USED CONE CRUSHER

Sieving Results

Reported Sample Weight (g): 119.3
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo

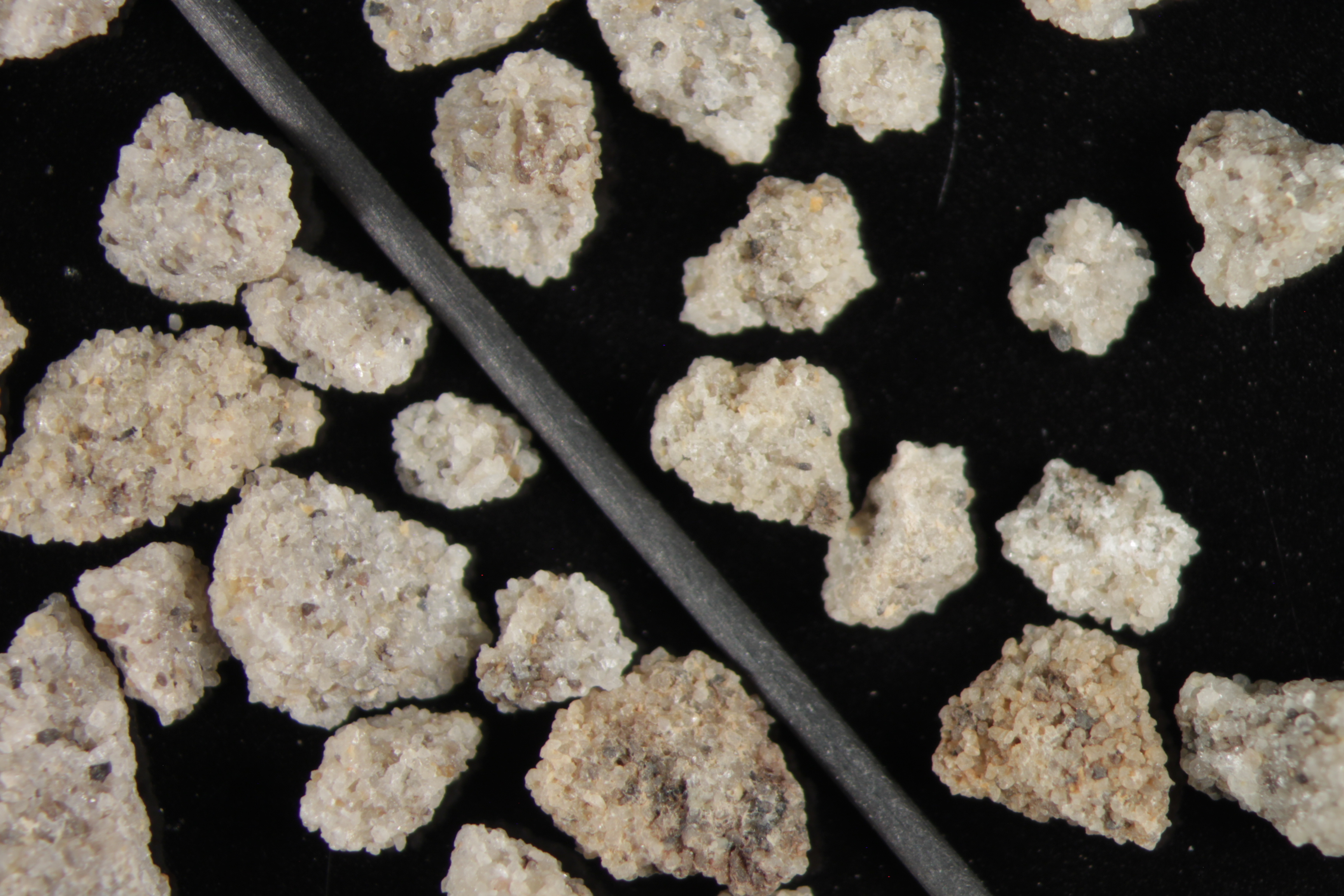

16 334.4 349 14.6 12.24 %
20 305.9 316.4 10.5 8.80 %
30 296 306.9 10.9 9.14 %
40 285.5 295 9.5 7.96 %
50 263.8 272.6 8.8 7.38 %
60 260.2 266 5.8 4.86 %
70 283.9 290.6 6.7 5.62 %

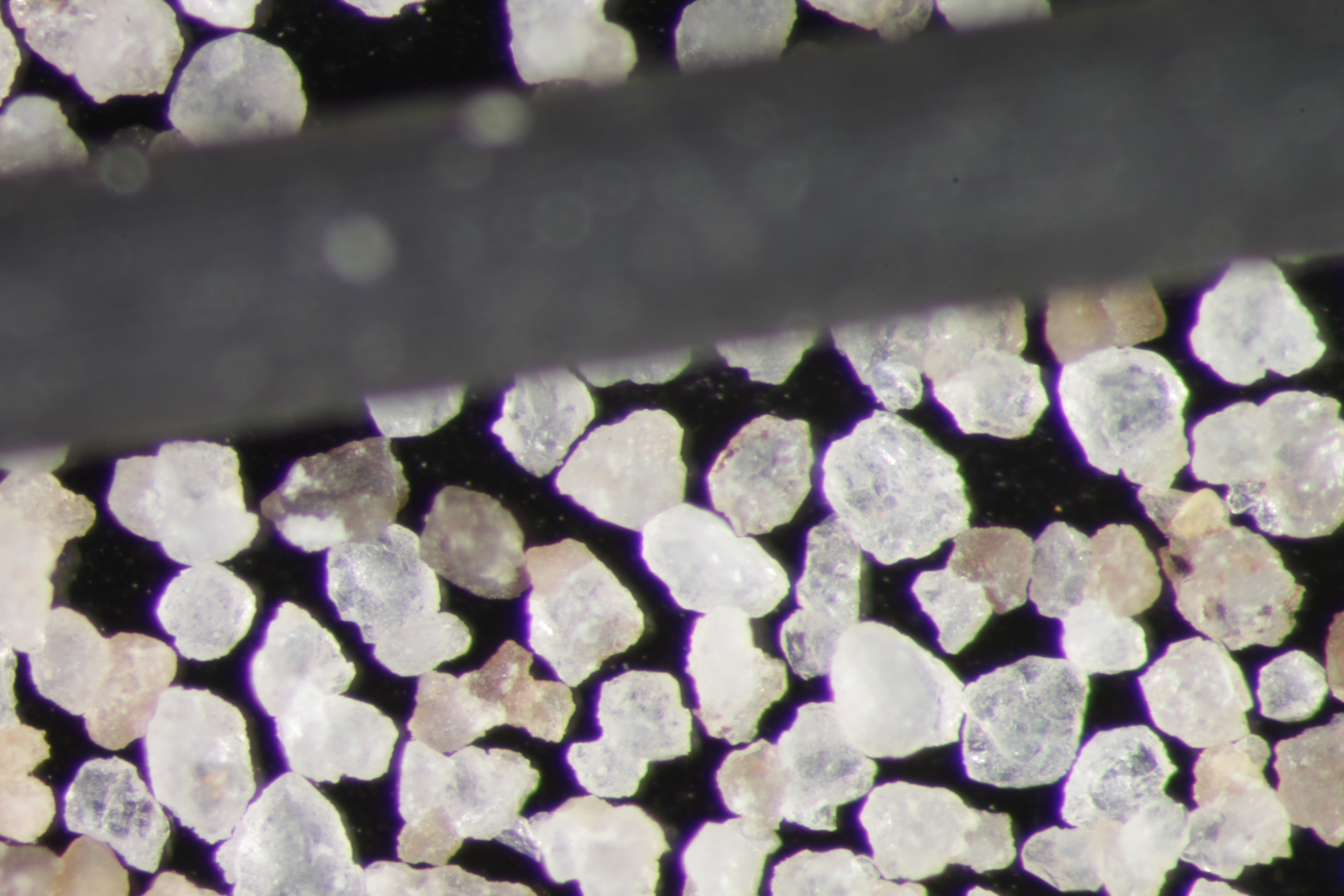

140 252.9 301.6 48.7 40.82 %
pan 355.3 359.1 3.8 3.19 % No photo available
Totals 119.30 100.00 %
Error (Init/Final Mass) 0.00 %
Lab Results
Sphericity 0.65
Roundness 0.63
First Primary 70
Second Primary 140

Available Documents

    View document [ENN_05_SV_14_PRECRUSH2015_7_22_9_19_36.pdf]
    View document [ENN_05_SV_14_CRUSH6K2015_7_22_9_21_3.pdf]
    View document [ENN_05_SV_14_CRUSH7K2015_7_22_9_21_12.pdf]
    View document [ENN_05_SV_14_SPHERE_AND_ROUND2016_2_4_12_22_35.pdf]
