The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name CFD-16-SV-14 Site Name CFD-SV-14
Latitude 46.856693 Longitude -111.366762
Geomethod NAV-GPS Datum WGS84
Elevation 4658 Township 13N
County MEAGHER Range 03E
100K Quad CANYON FERRY DAM Section 28
24K Quad ELLIS CANYON Quarter Section CB
Sample Taken YES
Sample Date 9/26/2014 Formation Name Kibbey Formation (Mk)
Sampler Name SUSAN VUKE Sampler Notes ALONG NEW SEGMENT OF UPPER MILLEGAN RD BETWEEN LINGSHIRE AND MILLEGAN
Thickness ~50 FT Extent OC AND ALREADY EXCAVATED SURFACE FOR NEW RD SEGMENT
References

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
781.9 565.9
Material Notes
USED CONE CRUSHER

Sieving Results

Reported Sample Weight (g): 93

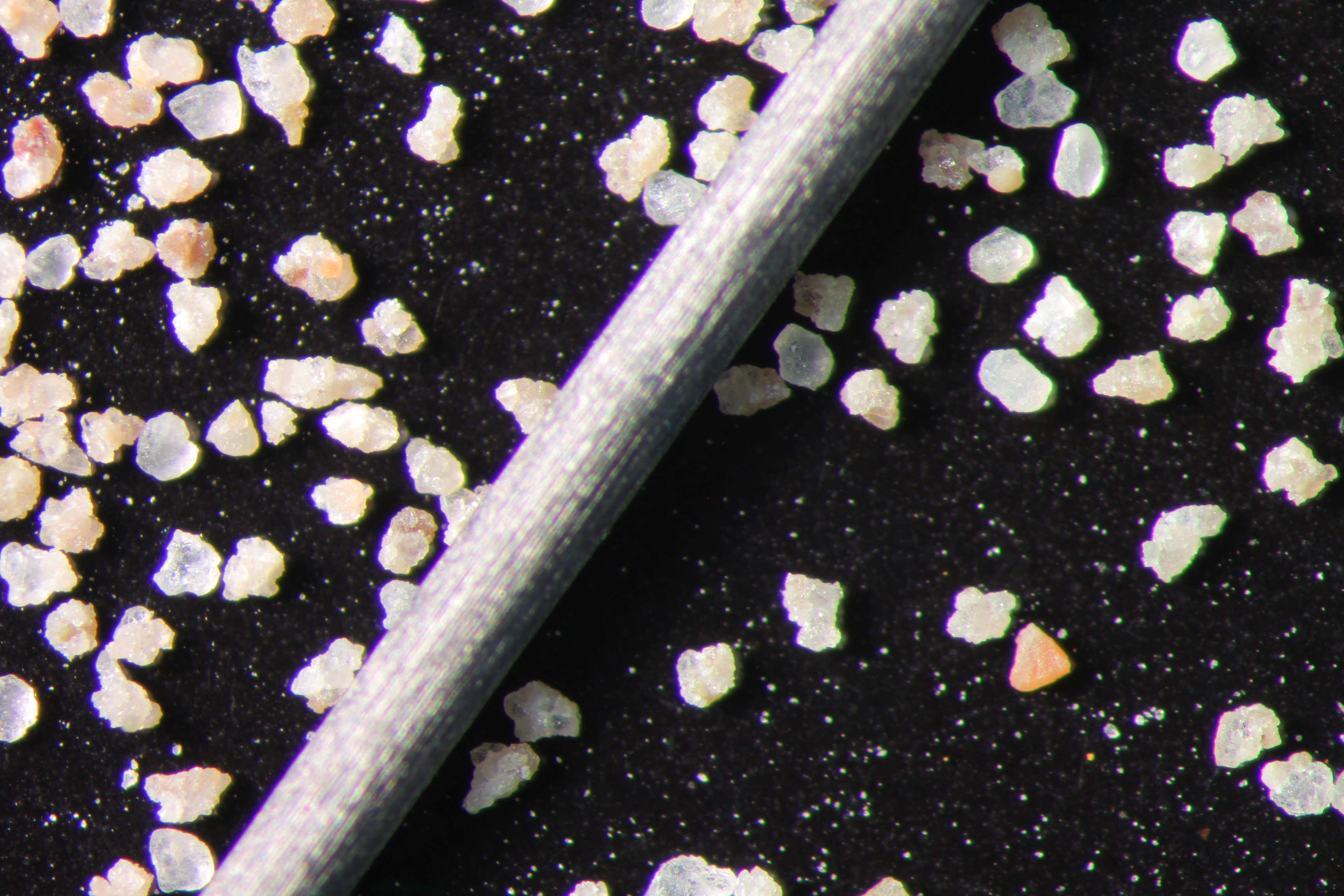

Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.5 337.3 2.8 3.01 %
20 306 311.9 5.9 6.34 %
30 296.1 303.9 7.8 8.39 %
40 285.6 293.5 7.9 8.49 %
50 263.9 272.2 8.3 8.92 %
60 260.3 265.8 5.5 5.91 %
70 283.9 289.2 5.3 5.70 %
140 253 286.5 33.5 36.02 %
pan 355.3 371.3 16 17.20 % No photo available
Totals 93.00 100.00 %
Error (Init/Final Mass) 0.00 %
Lab Results
Sphericity 0.61
Roundness 0.4
First Primary 70
Second Primary 140

Available Documents

    View document [CFD_16_SV_14_PRECRUSH0432016_2_5_12_36_8.pdf]
    View document [CFD_16_SV_14_SNR0412016_2_5_12_36_14.pdf]
