The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name CFD-15-SV-14 Site Name CFD-SV-14
Latitude 46.841612 Longitude -111.404489
Geomethod NAV-GPS Datum WGS84
Elevation 4960 Township 13N
County MEAGHER Range 03E
100K Quad CANYON FERRY DAM Section 31
24K Quad LINGSHIRE Quarter Section CA
Sample Taken YES
Sample Date 9/26/2014 Formation Name Kibbey Formation (Mk)
Sampler Name SUSAN VUKE Sampler Notes ALONG UPPER MILLEGAN RD AT LINGSHIRE
Thickness ~50 FT Extent OC AND BOULDERS BELOW
References

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
596 292.6
Material Notes
CLUSTERS SEEN THROUGHOUT SAMPLE

Sieving Results

Reported Sample Weight (g): 108.8
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.5 342.9 8.4 7.72 %
20 306 318.6 12.6 11.58 %
30 296 312.1 16.1 14.80 %

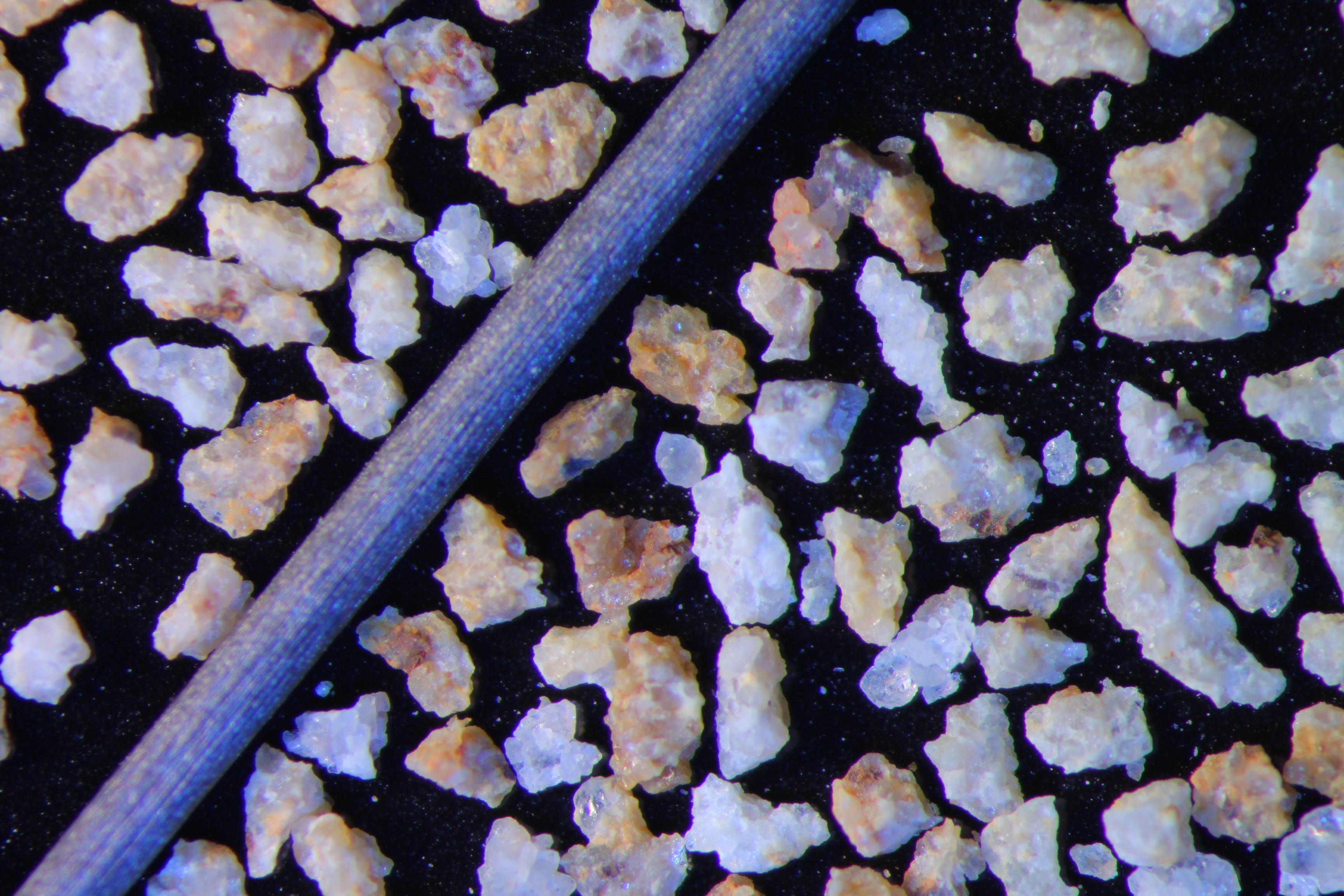

40 285.6 300.7 15.1 13.88 %
50 263.8 281.6 17.8 16.36 %
60 260.4 271 10.6 9.74 %
70 284 292.5 8.5 7.81 %
140 253 271.3 18.3 16.82 %
pan 355.3 356.6 1.3 1.19 % No photo available
Totals 108.70 99.91 %
Error (Init/Final Mass) 0.09 %
Lab Results
Sphericity
Roundness
First Primary 40
Second Primary 70

Available Documents

    View document [CFD_15_SV_14_PRECRUSH0512015_8_13_11_30_10.pdf]
