The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name ENN-04-SV-14 Site Name ENN-SV-14
Latitude 45.091799 Longitude -111.86168
Geomethod NAV-GPS Datum WGS84
Elevation 8451 Township 08S
County MADISON Range 02W
100K Quad ENNIS Section 33
24K Quad BROOMTAIL RIDGE Quarter Section CB
Sample Taken YES
Sample Date 8/21/2014 Formation Name Quadrant Formation (*q)
Sampler Name SUSAN VUKE Sampler Notes GRAVELLY RANGE: ALONG DEVILS LANE DEVILS LANE PART OF RD 290
Thickness ~ 250 FT BUT ONLY LOOSE BLOCKS EXPOSED AT SURFACE Extent LOOSE BLOCKS FROM LOCAL OC
References
Sample Characteristics
Meets API Minimum Standards Minerology
YES QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
509.2
Material Notes

Sieving Results

Reported Sample Weight (g): 120
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.5 342.3 7.8 6.50 %
20 306 313 7 5.83 %
30 296.1 304.1 8 6.67 %
40 285.6 293.3 7.7 6.42 %
50 264 274.5 10.5 8.75 %
60 260.4 272.6 12.2 10.17 %

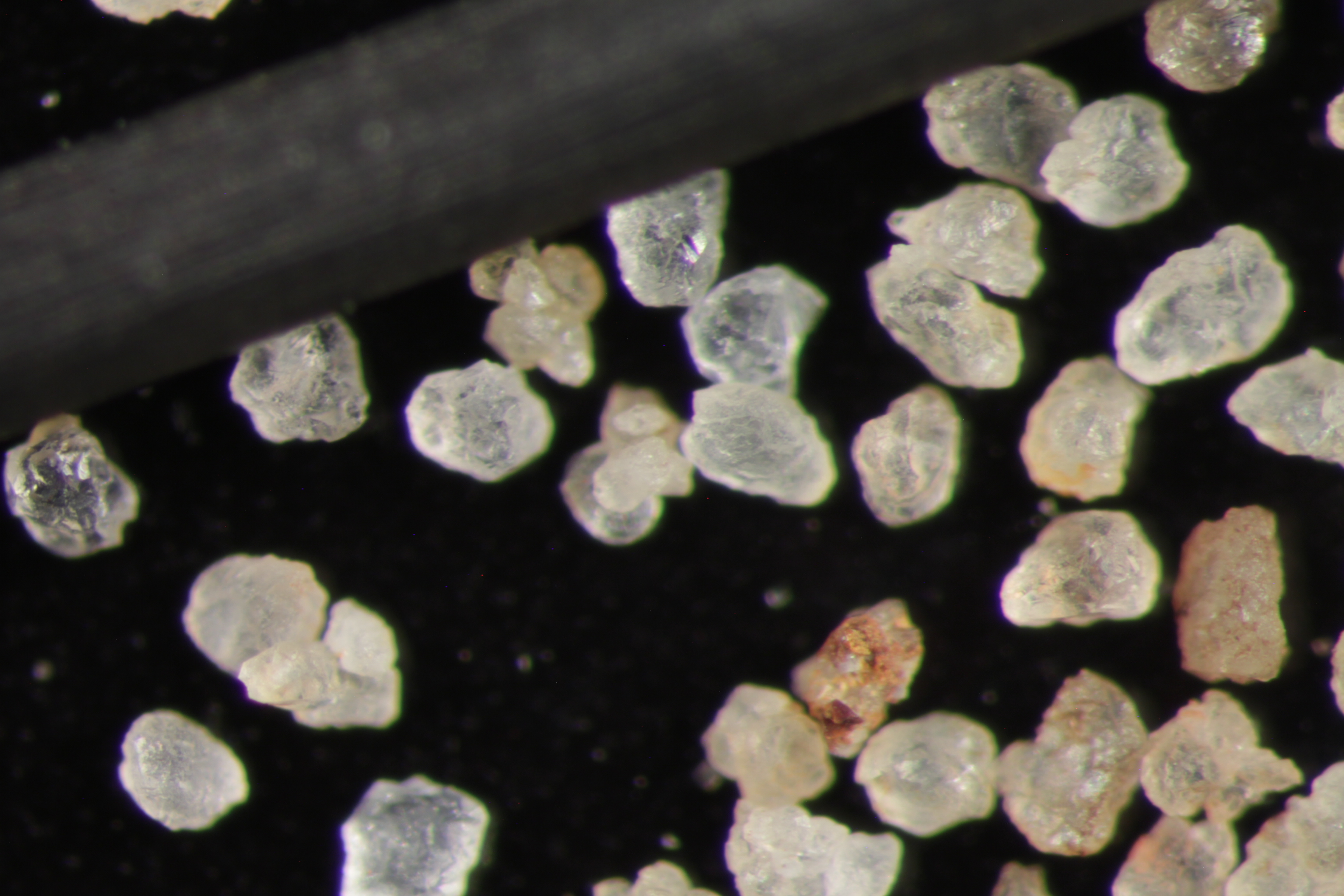

70 284 298.9 14.9 12.42 %
140 253 300.3 47.3 39.42 %
pan 355.3 359.8 4.5 3.75 % No photo available
Totals 119.90 99.92 %
Error (Init/Final Mass) 0.08 %
Lab Results
Sphericity 0.65
Roundness 0.63
First Primary 70
Second Primary 140

Available Documents

    View document [ENN_04_SV_14_PRECRUSH0552015_7_22_9_13_48.pdf]
    View document [ENN_04_SV_14_SNR2015_7_22_9_15_2.pdf]
    View document [ENN_04_SV_14_CRUSH_6K2015_7_22_9_15_17.pdf]
    View document [ENN_04_SV_14_CRUSH_7K2015_7_22_9_15_26.pdf]
