The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name B65-4 Site Name B65-JG
Latitude 47.01052 Longitude -110.33862
Geomethod NAV-GPS Datum WGS84
Elevation 5384 Township 14N
County JUDITH BASIN Range 11E
100K Quad BELT Section 33
24K Quad CAYUSE BASIN Quarter Section BA
Sample Taken YES
Sample Date 9/18/2014 Formation Name Kibbey Formation (Mk)
Sampler Name JAY GUNDERSON Sampler Notes WOODHURST RD 1 MI EAST OF RUNNING WOLF CK; YELLOW, HARD, VF GRND QTZ SS, THIN BEDDING 1-2" THICK; BEDS STRIKE 50 DEG, DIP 17 DEG NW
Thickness 10 Extent 50
References

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
584.5 339.2
Material Notes
CLUSTERS, USED CONE CRUSHER

Sieving Results

Reported Sample Weight (g): 118.3
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo

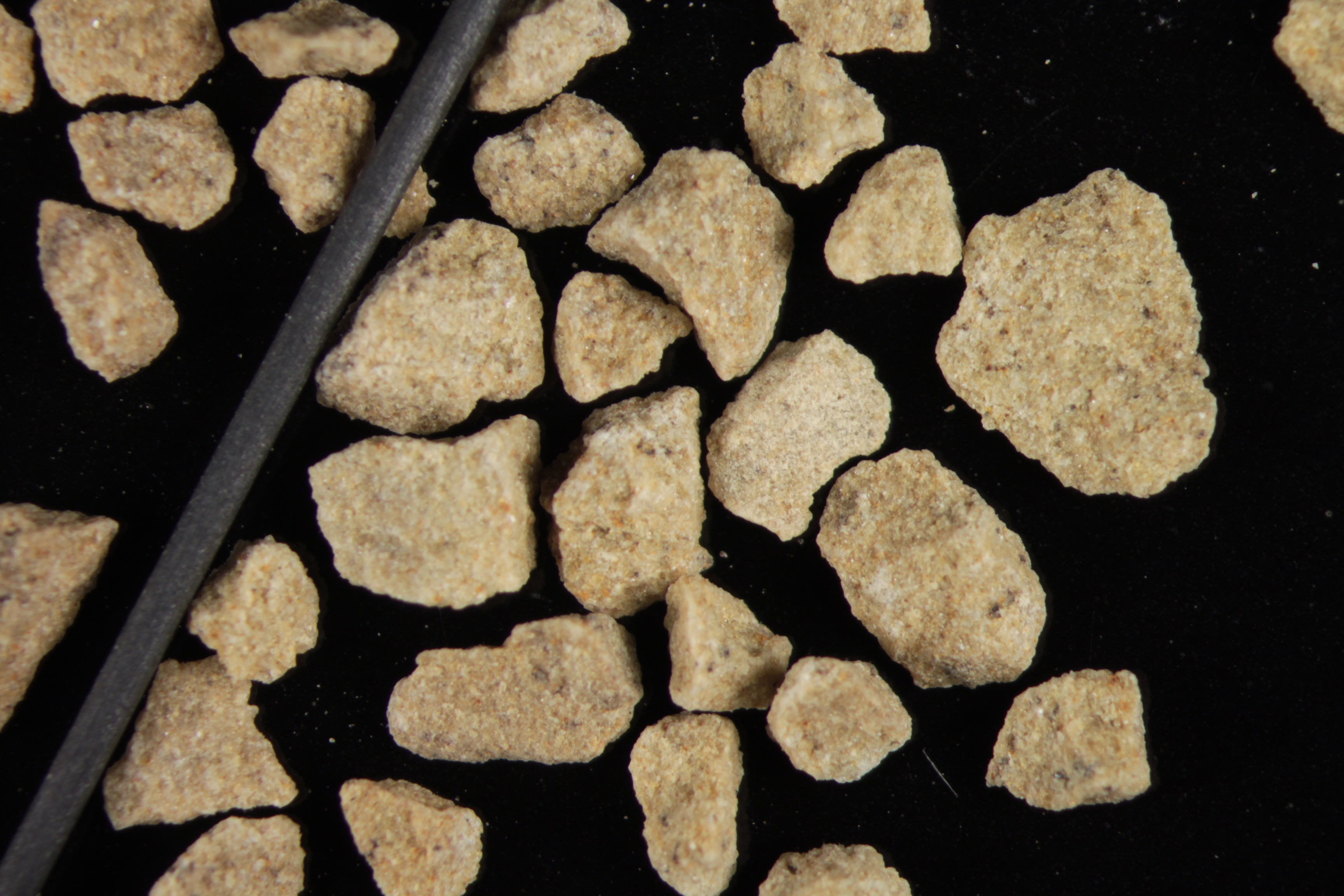

16 334.4 356.5 22.1 18.68 %
20 305.8 330.1 24.3 20.54 %
30 296 320.5 24.5 20.71 %
40 285.5 303.1 17.6 14.88 %

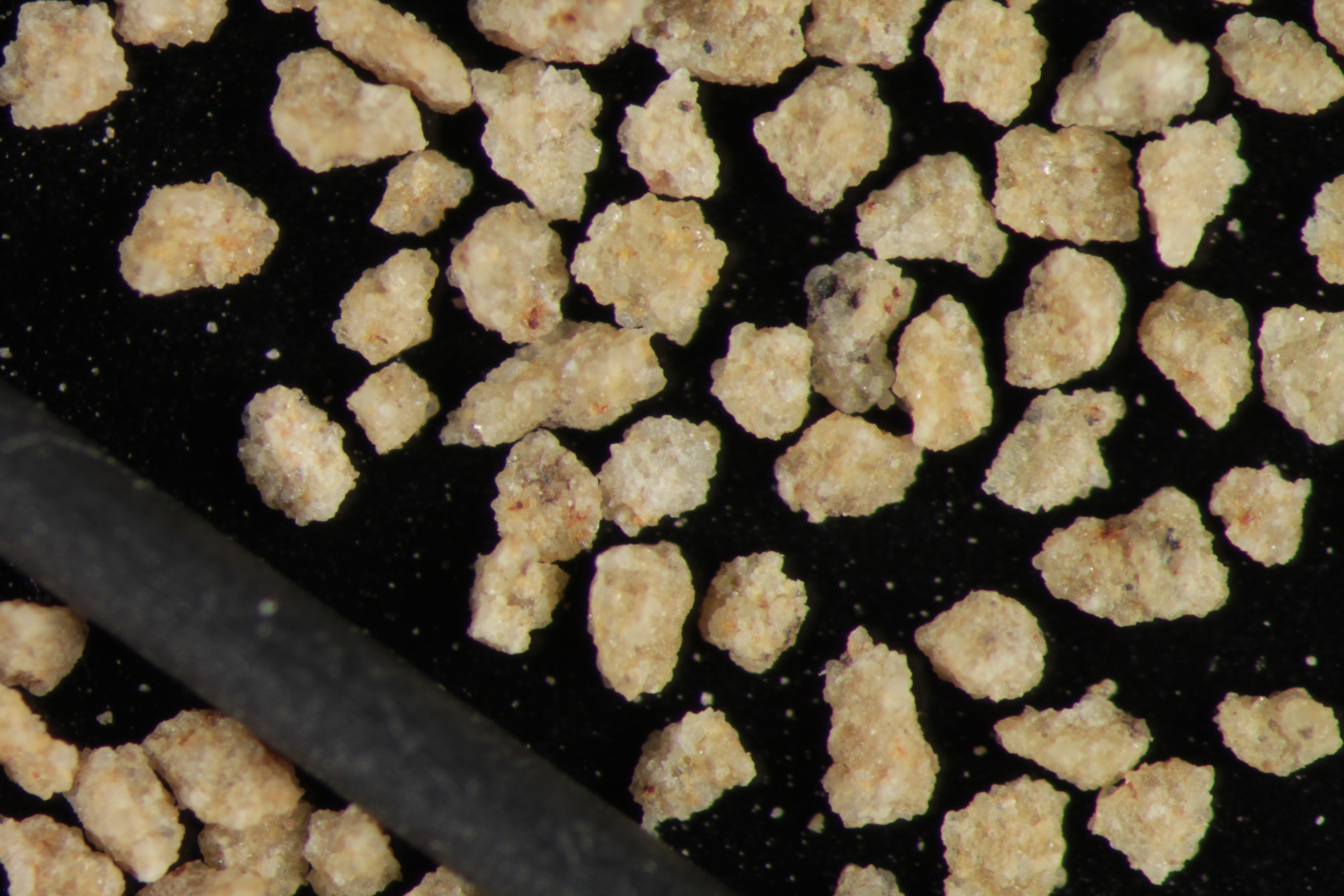

50 263.8 275.6 11.8 9.97 %
60 260.2 265.2 5 4.23 %
70 283.9 287.3 3.4 2.87 %
140 252.9 260.6 7.7 6.51 %
pan 355.3 357.2 1.9 1.61 % No photo available
Totals 118.30 100.00 %
Error (Init/Final Mass) -0.00 %
Lab Results
Sphericity
Roundness
First Primary 16
Second Primary 30

Available Documents

    View document [B65_04_PRECRUSH2015_7_14_11_29_36.pdf]
