The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name B65-1 Site Name B65-JG
Latitude 47.02683 Longitude -110.28635
Geomethod NAV-GPS Datum WGS84
Elevation 4983 Township 15N
County JUDITH BASIN Range 11E
100K Quad BELT Section 26
24K Quad CAYUSE BASIN Quarter Section DD
Sample Taken YES
Sample Date 9/18/2014 Formation Name Quadrant Formation (*q)
Sampler Name JAY GUNDERSON Sampler Notes LEHIGH RD SW OF WINDHAM; ENTER WILLOW CK CANYON FROM NE; WHITE, HARD VF GRND SS. MOST OF OC IS GRAY LIMESTONE (AMSDEN?); LOOKS VERY SIMILAR TO TENSLEEP
Thickness Extent
References

Site Photographs

Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
635 500.8
Material Notes

Sieving Results

Reported Sample Weight (g): 107.5

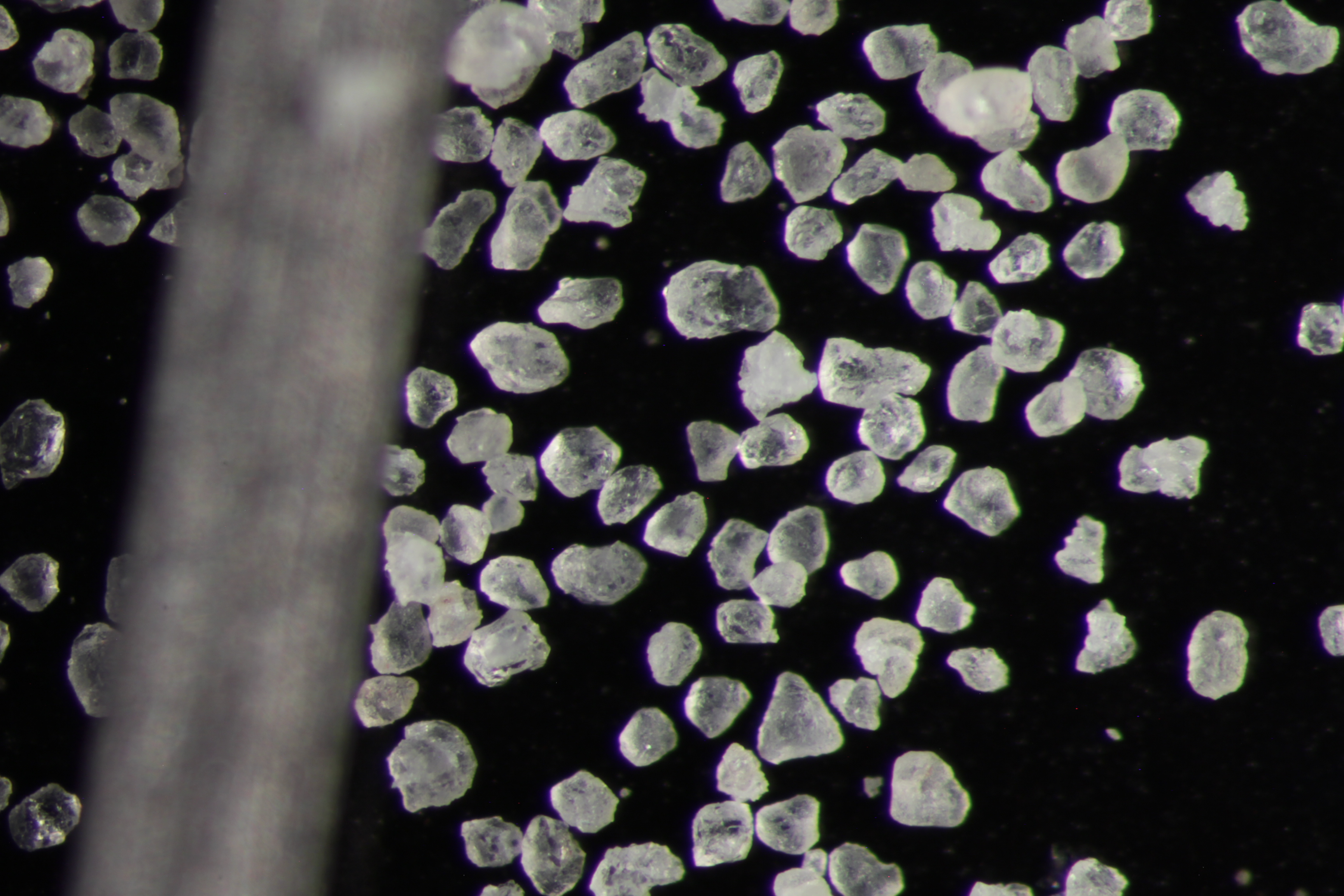

Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.4 340.9 6.5 6.05 %
20 305.9 310.5 4.6 4.28 %
30 295.9 300.3 4.4 4.09 %
40 285.5 289.6 4.1 3.81 %
50 263.7 267.8 4.1 3.81 %
60 260.2 263.1 2.9 2.70 %
70 283.9 287.7 3.8 3.53 %
140 253 302.4 49.4 45.95 %
pan 355.3 382.9 27.6 25.67 % No photo available
Totals 107.40 99.91 %
Error (Init/Final Mass) 0.09 %
Lab Results
Sphericity 0.7
Roundness 0.69
First Primary 70
Second Primary 140

Available Documents

    View document [B65_1_SV_14_PRECRUSH1022015_7_14_11_9_13.pdf]
    View document [B65_1_SPHERE_ROUND0922015_7_14_11_9_59.pdf]
    View document [B65_1_CRUSH5K1052015_7_14_11_10_31.pdf]
    View document [B65_1_REDO_CRUSH5K1182015_7_14_11_10_47.pdf]
    View document [B65_1_CRUSH6K1042015_7_14_11_11_0.pdf]
