The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name B63-2 Site Name B63-JG
Latitude 46.67213 Longitude -110.49953
Geomethod NAV-GPS Datum WGS84
Elevation 6195 Township 11N
County MEAGHER Range 10E
100K Quad WHITE SULPHUR SPRINGS Section 32
24K Quad RUSSIAN FLAT Quarter Section BD
Sample Taken YES
Sample Date 9/17/2014 Formation Name Flathead Formation (_f)
Sampler Name JAY GUNDERSON Sampler Notes W. SIDE SPRING CK RD - ABOUT 3/4 MI SOUTH OF WHITETAIL CAMP ; REDDISH QTZ SS; MED GRND, SUBROUNDED, MOD SORTED; COVERED
Thickness 5 Extent 50
References

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
779.6 734.4
Material Notes

Sieving Results

Reported Sample Weight (g): 112
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.4 336 1.6 1.43 %

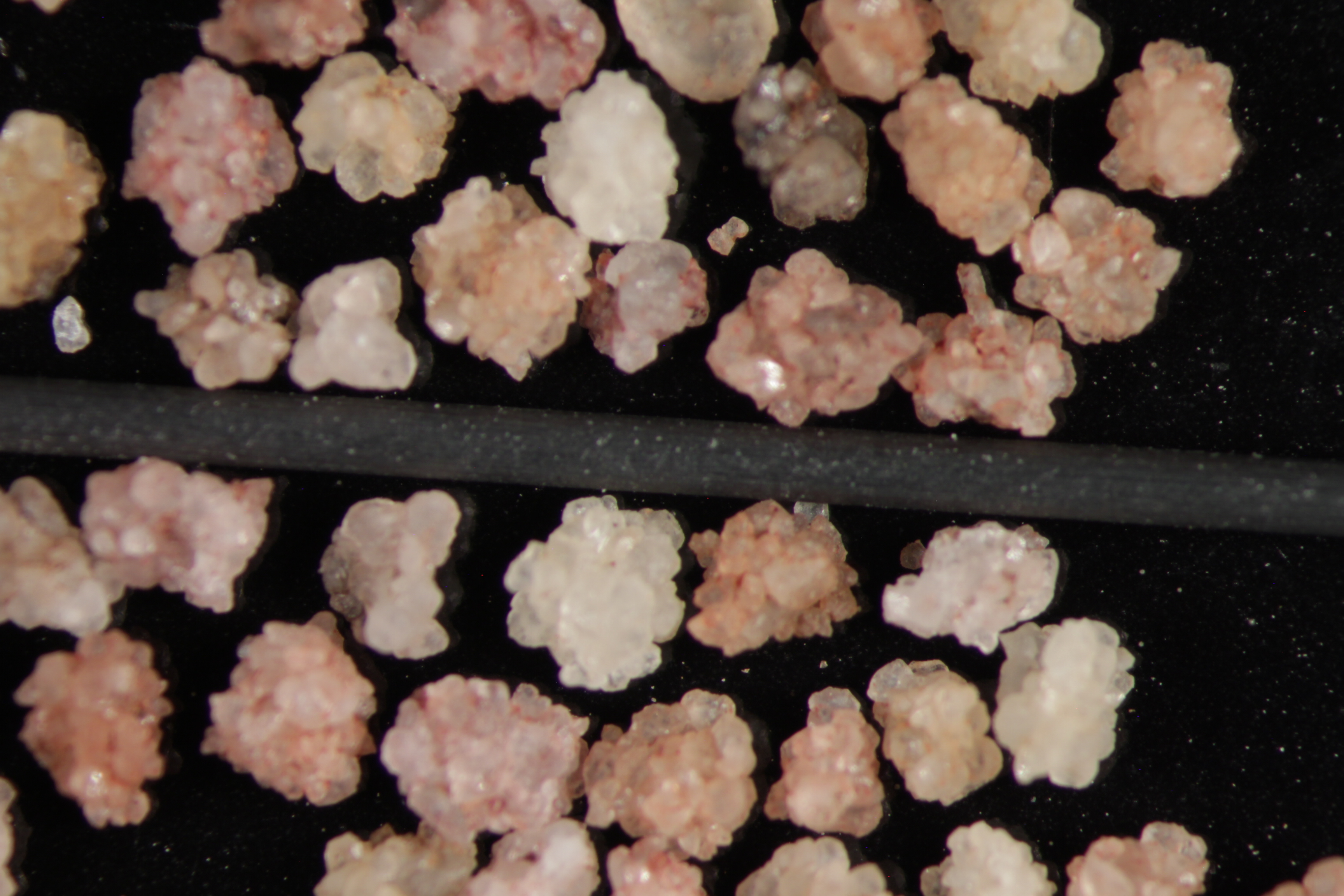

20 305.8 308.3 2.5 2.23 %
30 295.9 301.9 6 5.36 %
40 285.5 301.7 16.2 14.46 %
50 263.8 298.2 34.4 30.71 %
60 260.2 279.4 19.2 17.14 %

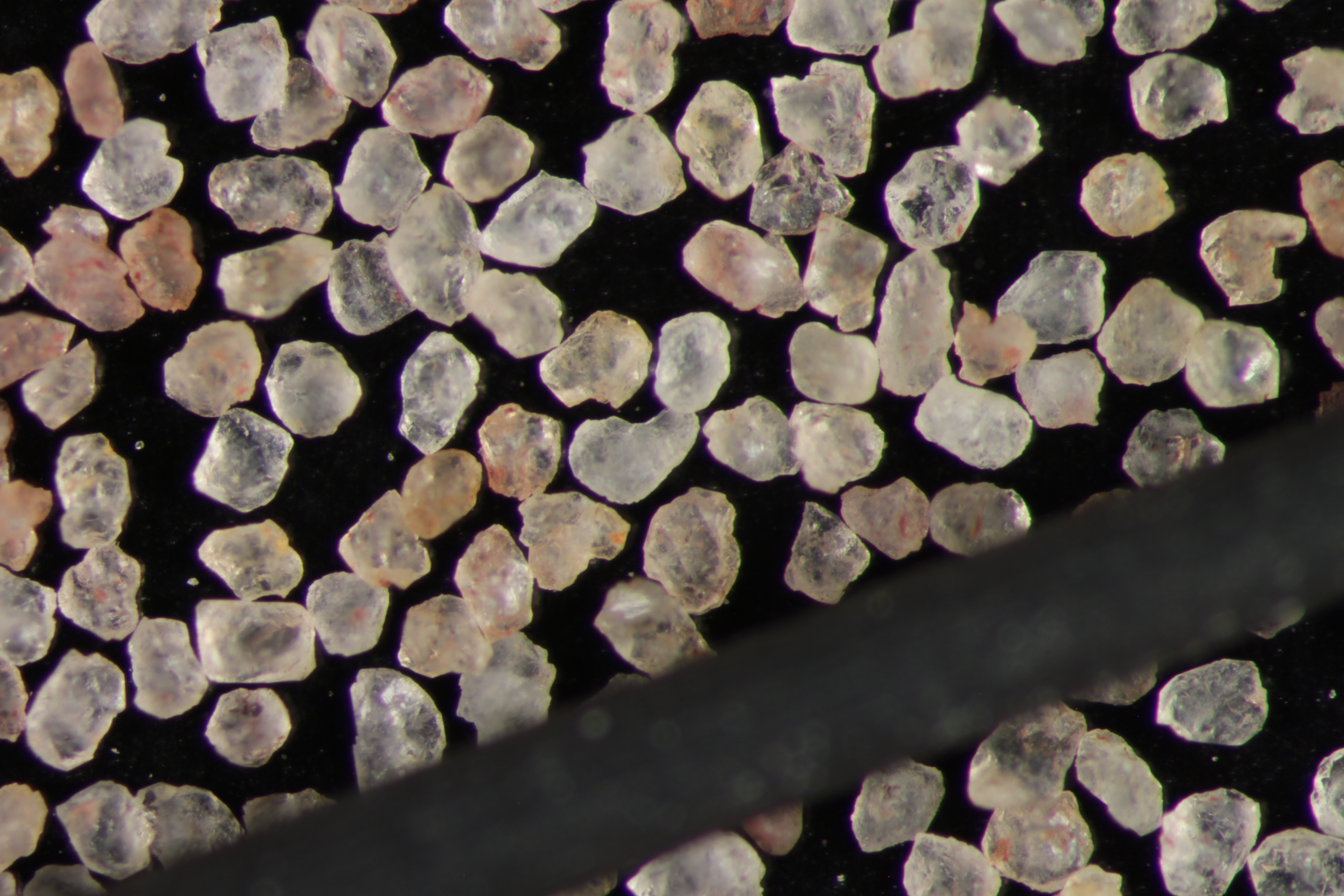

70 283.9 296.5 12.6 11.25 %

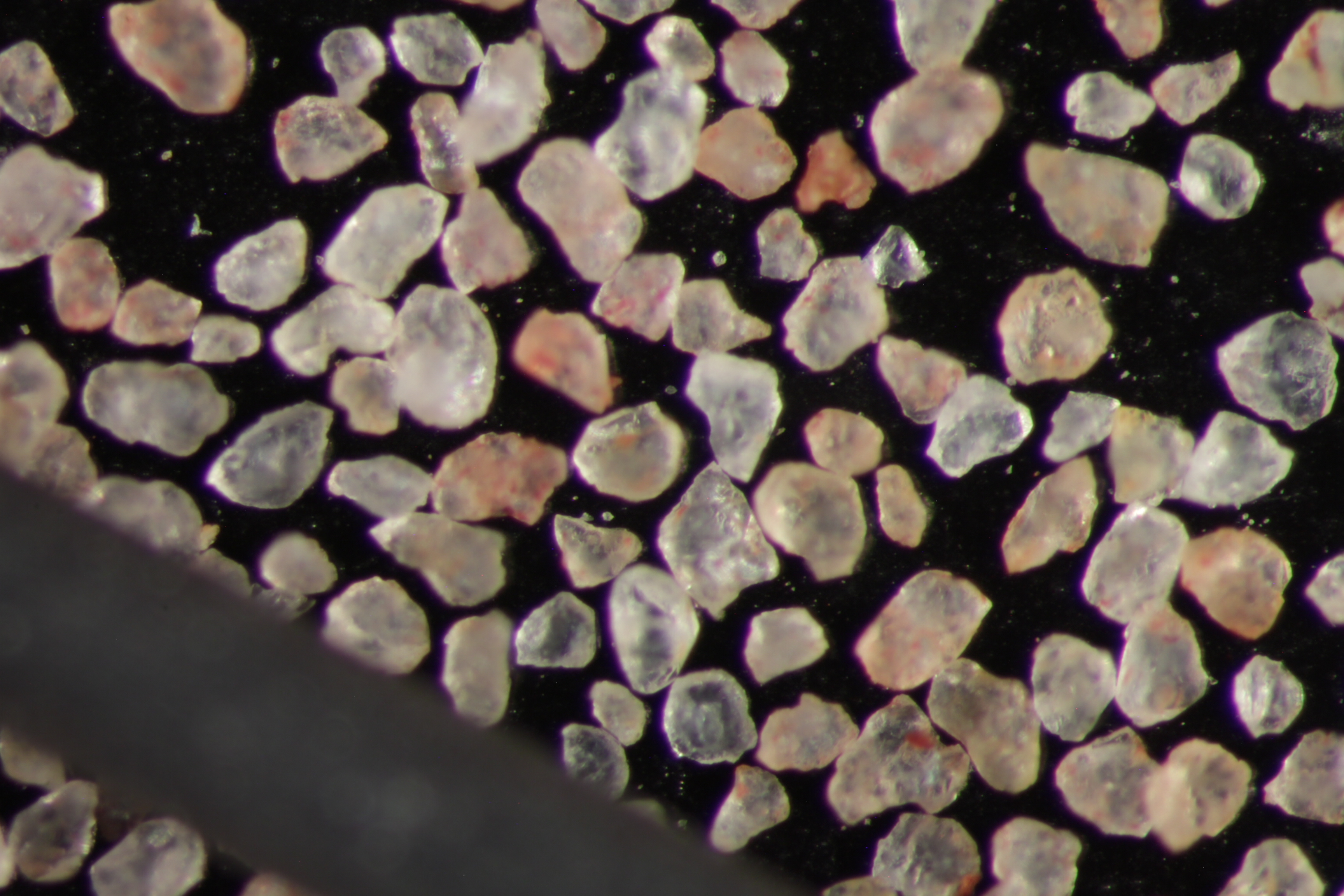

140 252.9 272.1 19.2 17.14 %
pan 355.3 355.6 0.3 0.27 % No photo available
Totals 112.00 100.00 %
Error (Init/Final Mass) 0.00 %
Lab Results
Sphericity 0.65
Roundness 0.67
First Primary 40
Second Primary 60

Available Documents

    View document [B63_2_SV_14_PRECRUSH1002015_8_17_10_58_33.pdf]
    View document [B63_2_SPHERE_ROUND0932015_8_17_10_58_51.pdf]
    View document [B63_2_SV_14_CRUSH5K1112015_8_17_10_59_14.pdf]
    View document [B63_2_SV_14_CRUSH6K2015_8_17_10_59_23.pdf]
