The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name B56-1 Site Name B56-JG
Latitude 45.09765 Longitude -108.58402
Geomethod NAV-GPS Datum WGS84
Elevation 5033 Township 08S
County CARBON Range 26E
100K Quad BRIDGER Section 31
24K Quad BEAR CANYON Quarter Section AD
Sample Taken YES
Sample Date 8/18/2014 Formation Name Tensleep Formation (IPt)
Sampler Name JAY GUNDERSON Sampler Notes 1 MI ON HELT RD; TURN LEFT AND GO 1 MI TO NE ON TWO-TRACK ; VF GRND QTZ SAND; SBEDS W/ CALCITE CMT
Thickness 15 Extent 9999
References

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
285.8 99
Material Notes

Sieving Results

Reported Sample Weight (g): 98.6

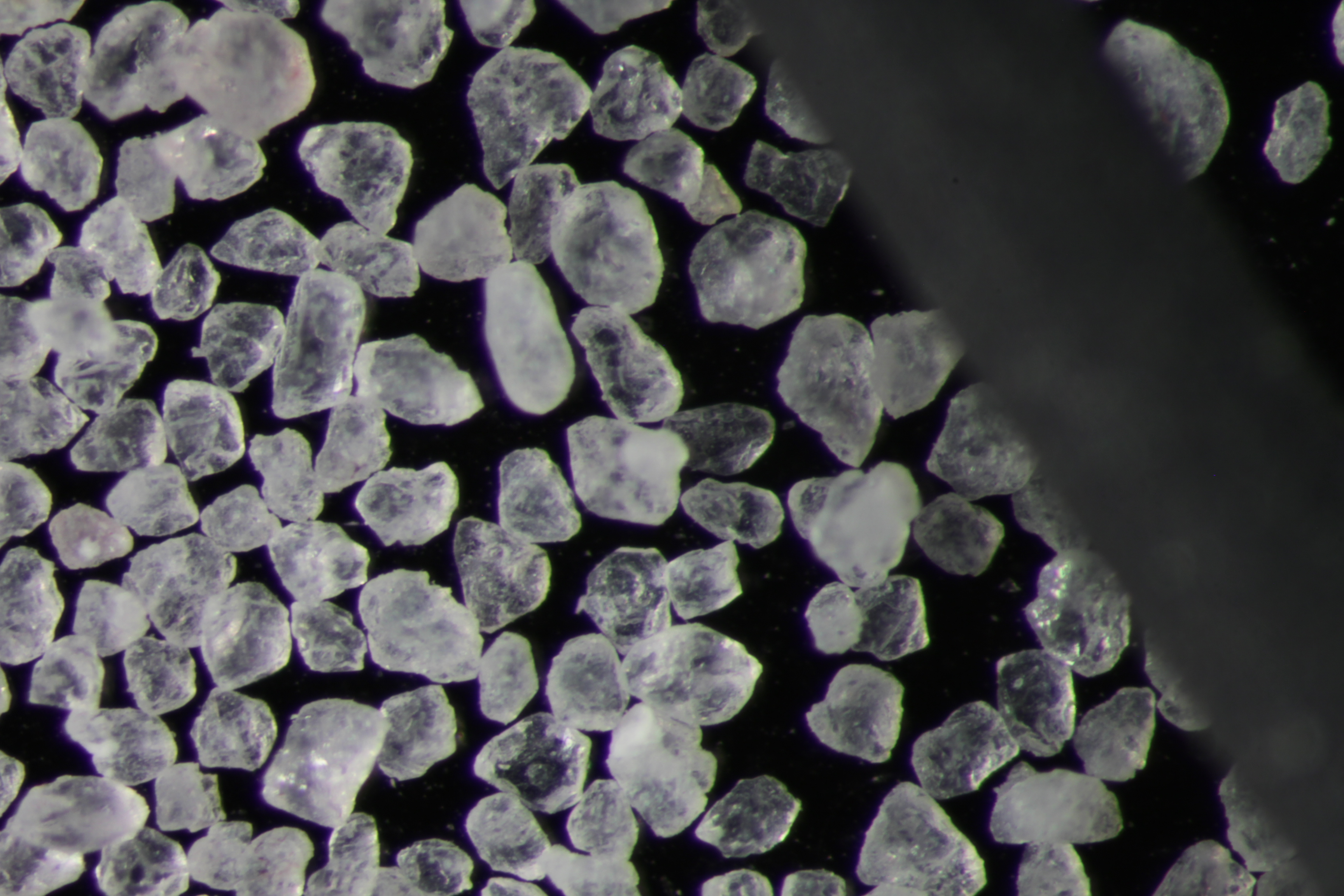

Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.4 334.4 0 0.00 % No photo available
20 305.9 305.9 0 0.00 %
30 295.9 296 0.1 0.10 %
40 285.6 285.8 0.2 0.20 %
50 264 264.8 0.8 0.81 %
60 260.4 262.6 2.2 2.23 %
70 284.2 289 4.8 4.87 %
140 253 329.9 76.9 77.99 %
pan 355.3 368.9 13.6 13.79 % No photo available
Totals 98.60 100.00 %
Error (Init/Final Mass) 0.00 %
Lab Results
Sphericity 0.65
Roundness 0.69
First Primary 70
Second Primary 140

Available Documents

    View document [B56_01_PRECRUSH2015_12_14_9_38_30.pdf]
    View document [B56_1_SNR1302015_12_14_9_40_30.pdf]
    View document [B56_01_6KCRUSH2015_12_14_9_40_43.pdf]
