The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name BELT-04-SV-14 Site Name BELT-04-SV-14
Latitude 47.27459 Longitude -110.682822
Geomethod NAV-GPS Datum NAD83
Elevation 4139 Township 18N
County CASCADE Range 08E
100K Quad BELT Section 34
24K Quad RAYNESFORD Quarter Section DD
Sample Taken YES
Sample Date 7/1/2014 Formation Name Kootenai Formation, Sunburst Member (Kks)
Sampler Name SUSAN VUKE Sampler Notes WILLIAMS CREEK RD., WEST OF SPION KOP
Thickness ~5 FT Extent LOOSE BLOCKS ALONG RD, PINCHING OUT
References
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
806.6 378.6
Material Notes
USED CONE CRUSHER

Sieving Results

Reported Sample Weight (g): 92.9

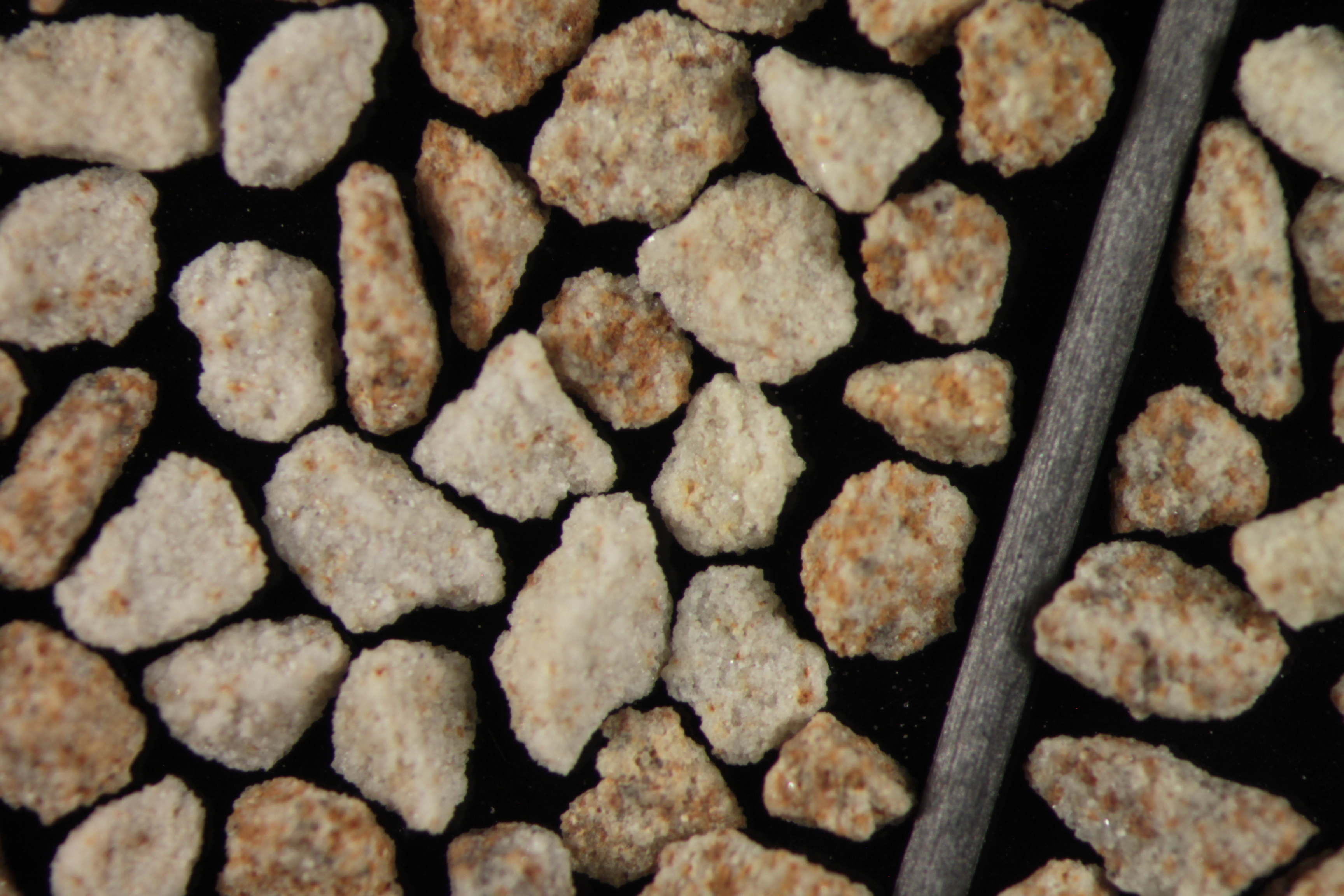

Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.5 347.2 12.7 13.67 %
20 306 322.3 16.3 17.55 %
30 296 312.5 16.5 17.76 %
40 285.5 297.7 12.2 13.13 %
50 263.9 273.1 9.2 9.90 %
60 260.4 264.5 4.1 4.41 %
70 284.1 287.2 3.1 3.34 %
140 253 263.3 10.3 11.09 %
pan 355.3 363.8 8.5 9.15 % No photo available
Totals 92.90 100.00 %
Error (Init/Final Mass) 0.00 %
Lab Results
Sphericity
Roundness
First Primary 16
Second Primary 30

Available Documents

    View document [BELT_04_SV_15_PRECRUSH0492015_7_15_15_37_5.pdf]
