The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name C-10 Site Name C-10
Latitude 45.38666 Longitude -112.59911
Geomethod NAV-GPS Datum NAD83
Elevation 5170 Township 05S
County BEAVERHEAD Range 08W
100K Quad DILLION Section 21
24K Quad BLOCK MOUNTAIN Quarter Section
Sample Taken YES
Sample Date 6/19/2014 Formation Name Quadrant Formation (*q)
Sampler Name ALEC,TIM, ALICIA Sampler Notes EXPOSED 2-5 FT, SLIGHT REACTION TO ACID
Thickness THIN Extent ~2-5FT
References
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
1161.8 964.1
Material Notes
USED CONE CRUSHER

Sieving Results

Reported Sample Weight (g): 117
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo

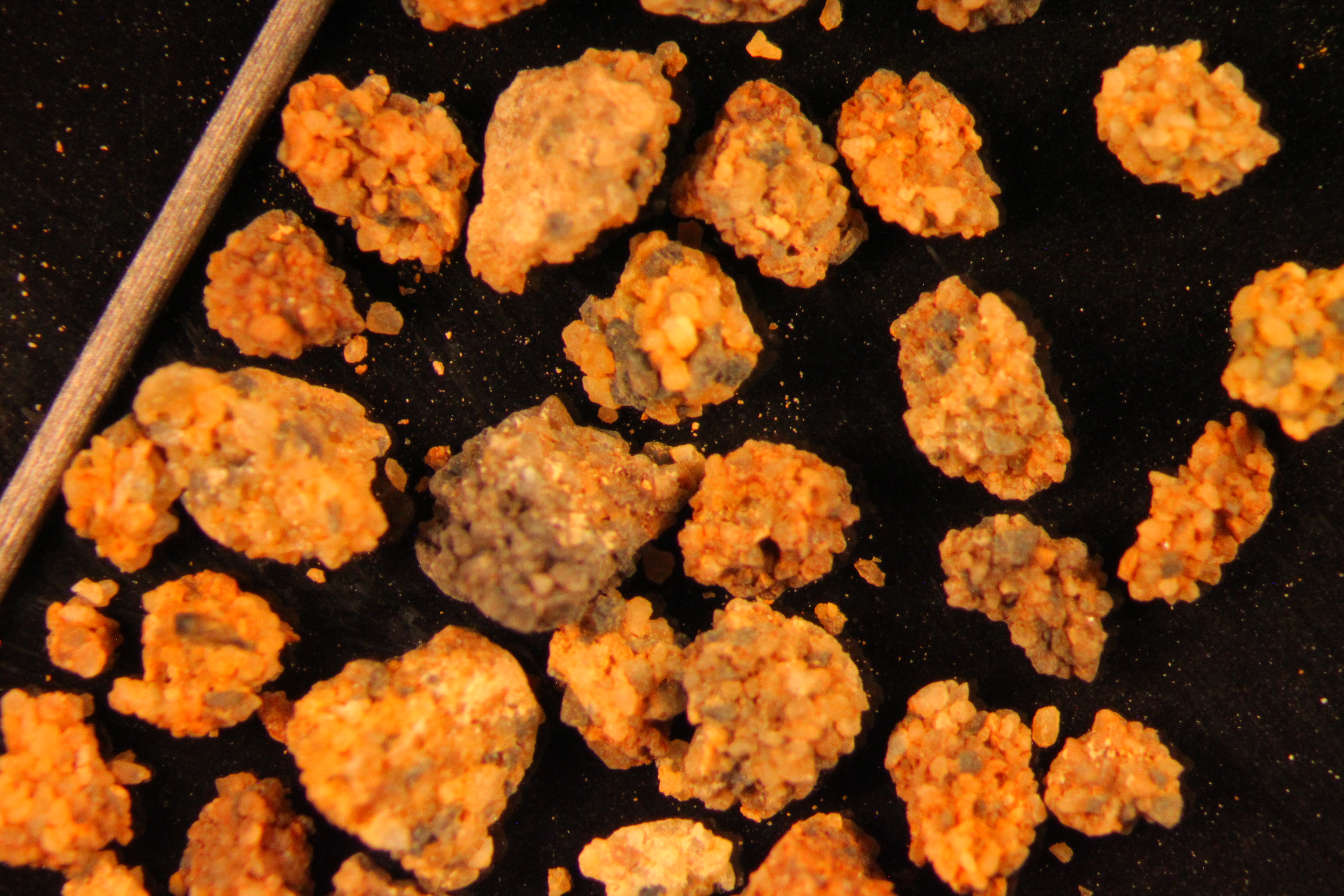

16 334.4 341.7 7.3 6.24 %
20 305.9 311.4 5.5 4.70 %
30 296 303.4 7.4 6.32 %
40 285.8 298.3 12.5 10.68 %
50 263.8 289 25.2 21.54 %
60 260.3 280.3 20 17.09 %
70 283.9 297.3 13.4 11.45 %
140 253 275.4 22.4 19.15 %
pan 355.4 358.6 3.2 2.74 % No photo available
Totals 116.90 99.91 %
Error (Init/Final Mass) 0.09 %
Lab Results
Sphericity 0.63
Roundness 0.54
First Primary 40
Second Primary 70

Available Documents

    View document [C_10_PRECRUSH2032015_8_17_10_23_58.pdf]
    View document [C_10_SPHERE_ROUND2042015_8_17_10_24_24.pdf]
    View document [C_10_CRUSH5K2015_8_17_10_25_21.pdf]
    View document [C-10_Crushh6k0142015_8_17_10_25_39.pdf]
