The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name ELL-2-SV-14 Site Name ELL-SV-14
Latitude 46.65562 Longitude -112.443654
Geomethod NAV-GPS Datum NAD83
Elevation 5723 Township 10N
County POWELL Range 07W
100K Quad ELLISTON Section 2
24K Quad ESMERELDA HILL Quarter Section AB
Sample Taken YES
Sample Date 5/29/2014 Formation Name Quadrant Formation (*q)
Sampler Name SUSAN VUKE Sampler Notes EXTENSIVE BUT LIMITED ACCESS. TOO TIGHTLY CEMENTED
Thickness 150 Extent 150
References

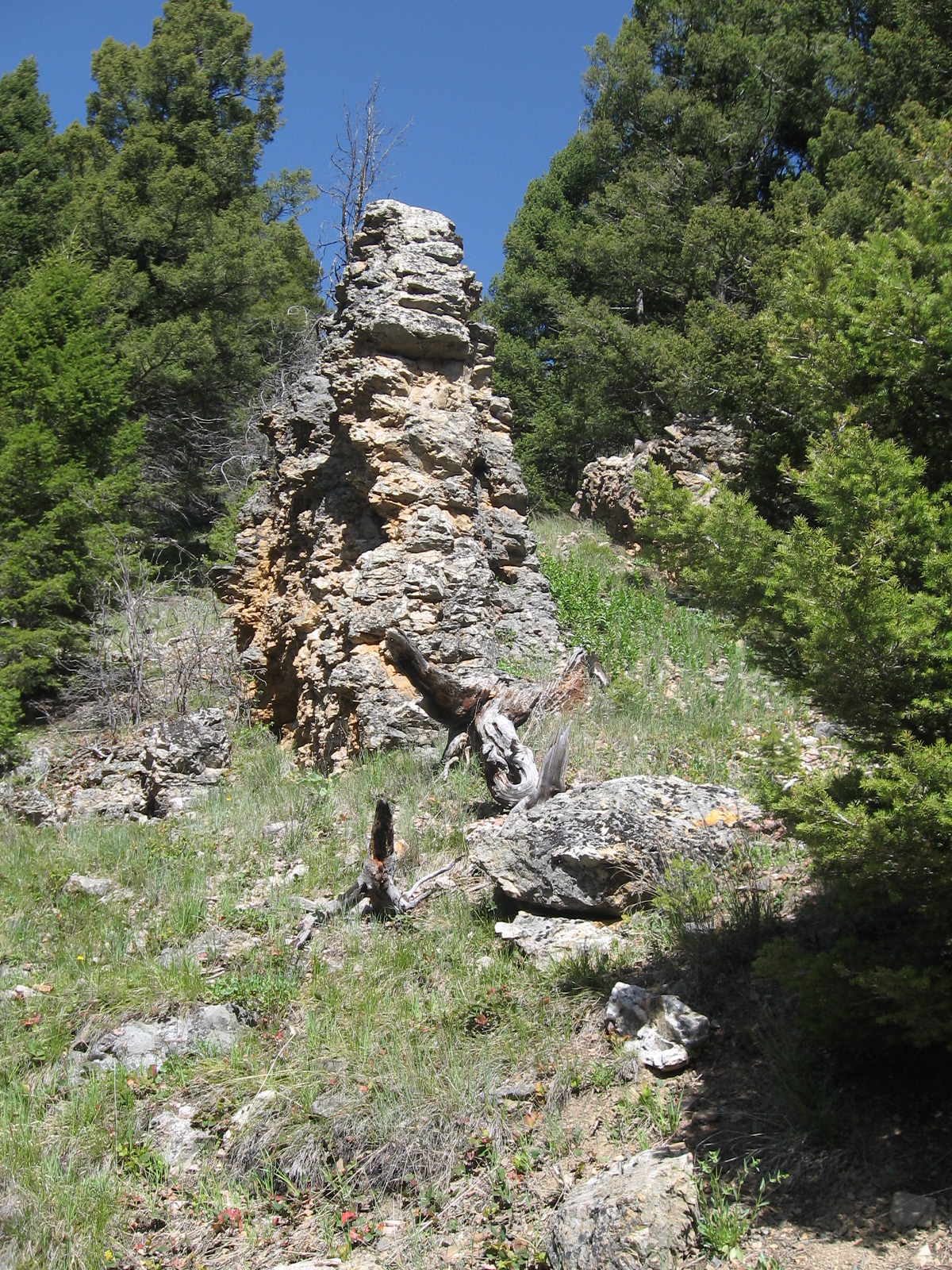

Site Photographs

Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
418.3 294.7
Material Notes
USED CONE CRUSHER, CLUSTERS SEEN TRHOUGHOUT SAMPLE

Sieving Results

Reported Sample Weight (g): 119.6
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.5 365 30.5 25.50 %
20 306 323.3 17.3 14.46 %
30 296 311.1 15.1 12.63 %
40 285.6 298.5 12.9 10.79 %
50 264.2 273.5 9.3 7.78 %
60 260.6 264.8 4.2 3.51 %

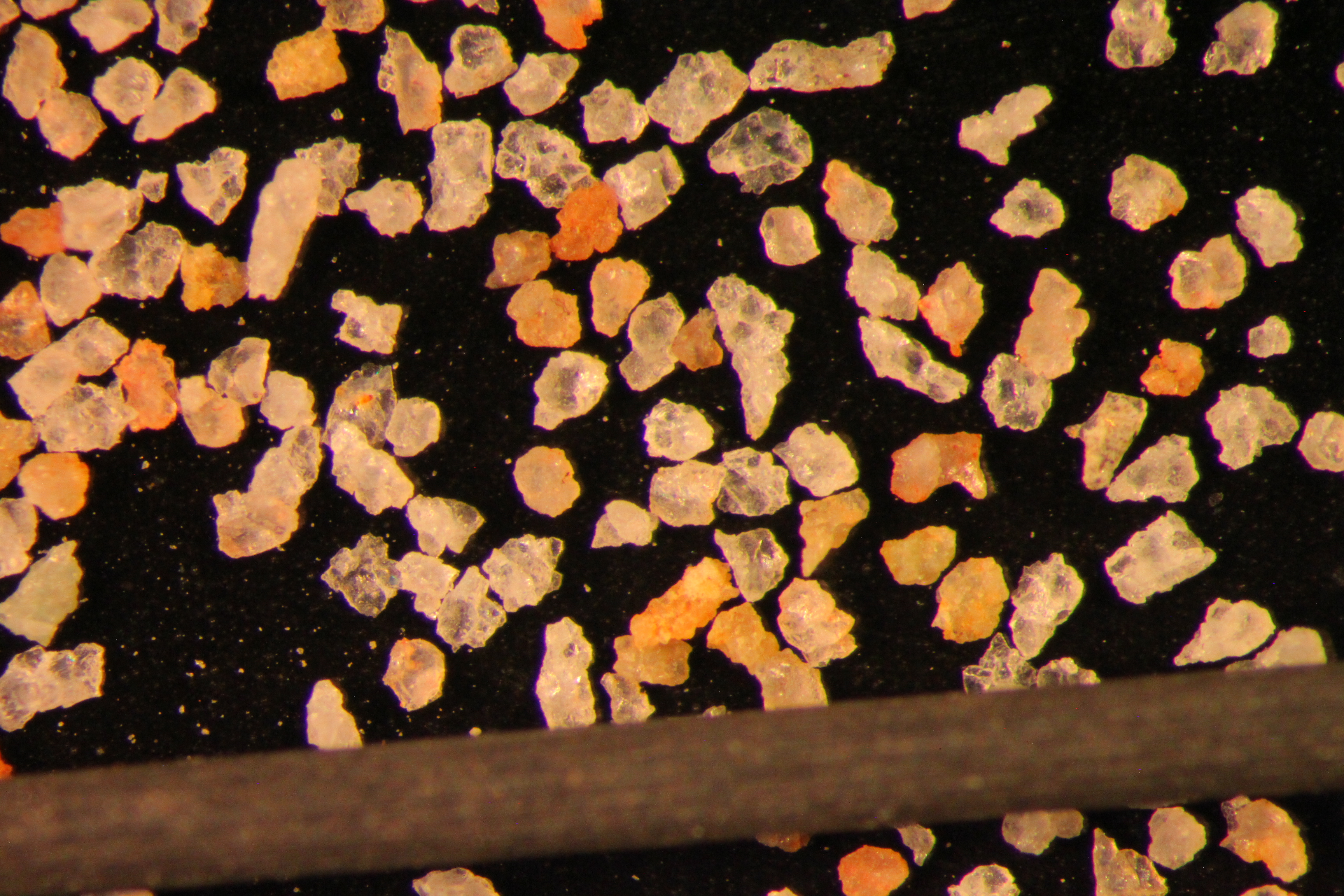

70 284 287.7 3.7 3.09 %
140 253 270.4 17.4 14.55 %
pan 355.3 364.4 9.1 7.61 % No photo available
Totals 119.50 99.92 %
Error (Init/Final Mass) 0.08 %
Lab Results
Sphericity
Roundness
First Primary 16
Second Primary 30

Available Documents

    View document [ELL_02_SV_14_PRECRUSH2015_7_28_12_6_25.pdf]
