The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name CFD-11-SV-14 Site Name CFD-SV-14
Latitude 46.99506 Longitude -111.99845
Geomethod NAV-GPS Datum NAD83
Elevation 3743 Township 14N
County LEWIS AND CLARK Range 03W
100K Quad CANYON FERRY DAM Section 4
24K Quad BEARTOOTH MOUNTAIN Quarter Section CC
Sample Taken YES
Sample Date 5/30/2014 Formation Name Blackleaf Formation, Flood Member (Kblf)
Sampler Name SUSAN VUKE Sampler Notes EXTENSIVE IN AREA EAST OF HOLTER LAKE
Thickness 50 Extent 50
References

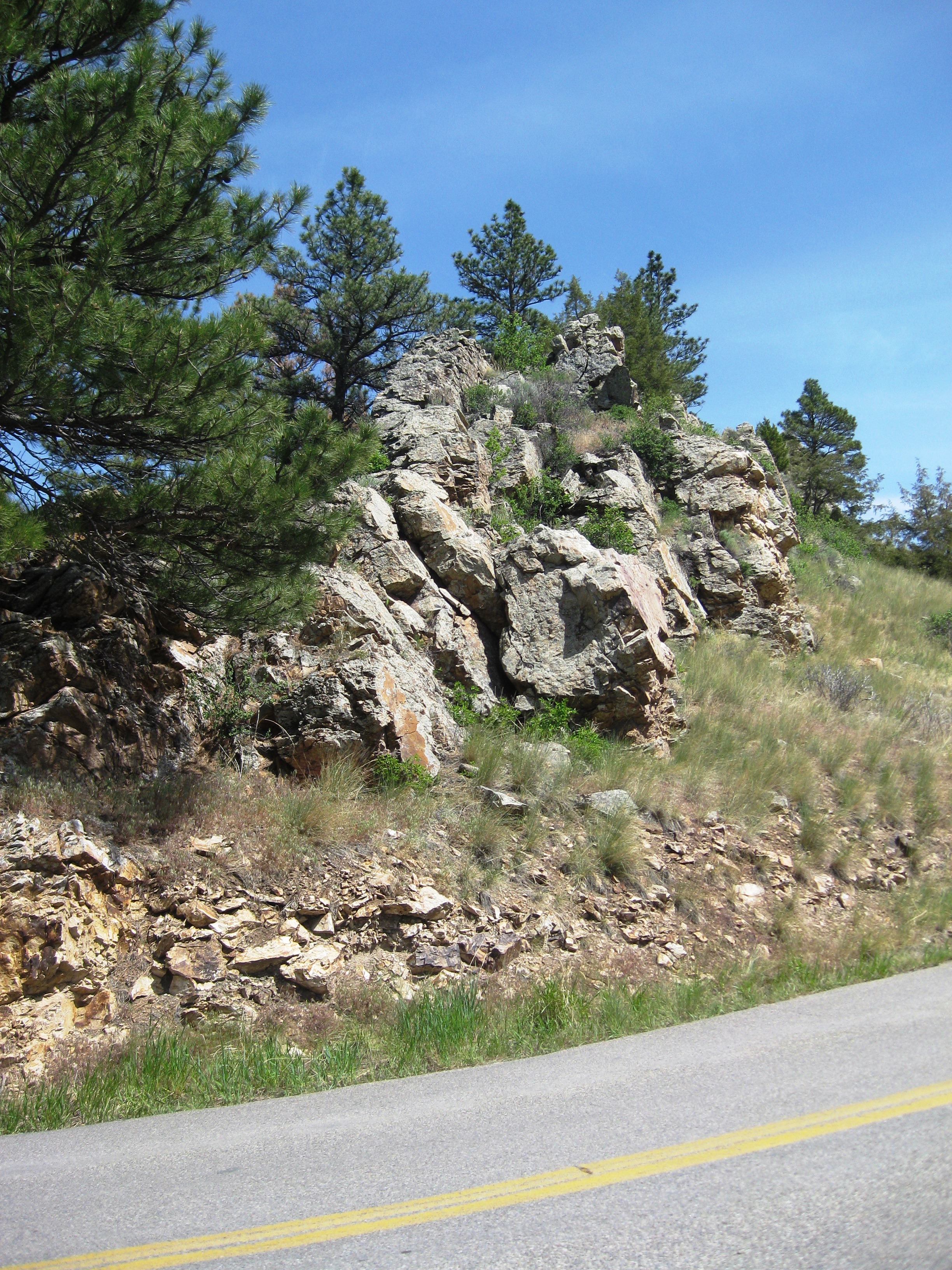

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
416.5 341.1
Material Notes
CLUSTERS SEEN THROUGHOUT SAMPLE

Sieving Results

Reported Sample Weight (g): 115
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.5 349.6 15.1 13.13 %
20 306 323.7 17.7 15.39 %
30 296 312.2 16.2 14.09 %
40 285.6 297.6 12 10.43 %
50 263.9 275 11.1 9.65 %
60 260.3 268.7 8.4 7.30 %
70 283.9 290.4 6.5 5.65 %
140 253 270.9 17.9 15.57 %
pan 355.4 365.4 10 8.70 % No photo available
Totals 114.90 99.91 %
Error (Init/Final Mass) 0.09 %
Lab Results
Sphericity
Roundness
First Primary 16
Second Primary 30

Available Documents

    View document [CFD_11_SV_14_PRECRUSH2015_8_13_11_49_41.pdf]
