The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name CFD-02-SV-14 Site Name CFD-SV-14
Latitude 46.786707 Longitude -111.897252
Geomethod NAV-GPS Datum NAD83
Elevation 3623 Township 12N
County LEWIS AND CLARK Range 02W
100K Quad CANYON FERRY DAM Section 19
24K Quad UPPER HOLTER LAKE Quarter Section DA
Sample Taken YES
Sample Date 5/28/2014 Formation Name Kibbey Formation (Mk)
Sampler Name SUSAN VUKE Sampler Notes EXTENSIVE BUT LIMITED ACCESS; ALONG BEAVER CREEK RD NEAR MISSOURI R ACCESS
Thickness 250 Extent 100
References

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
203.9 119.8
Material Notes
CLUSTERS SEEN THROUGHOUT SAMPLE

Sieving Results

Reported Sample Weight (g): 119.7
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 334.4 356.1 21.7 18.13 %

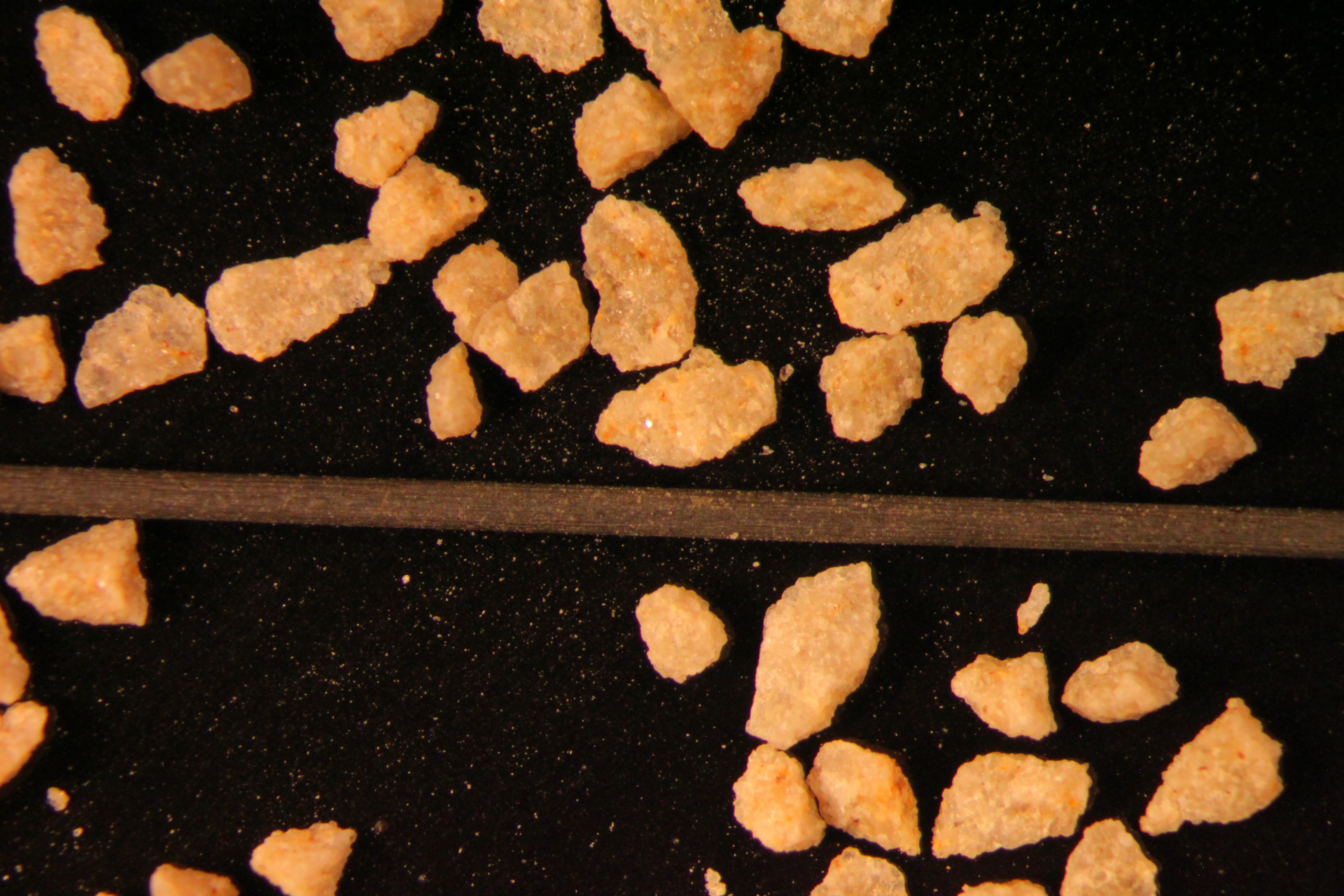

20 306 320 14 11.70 %

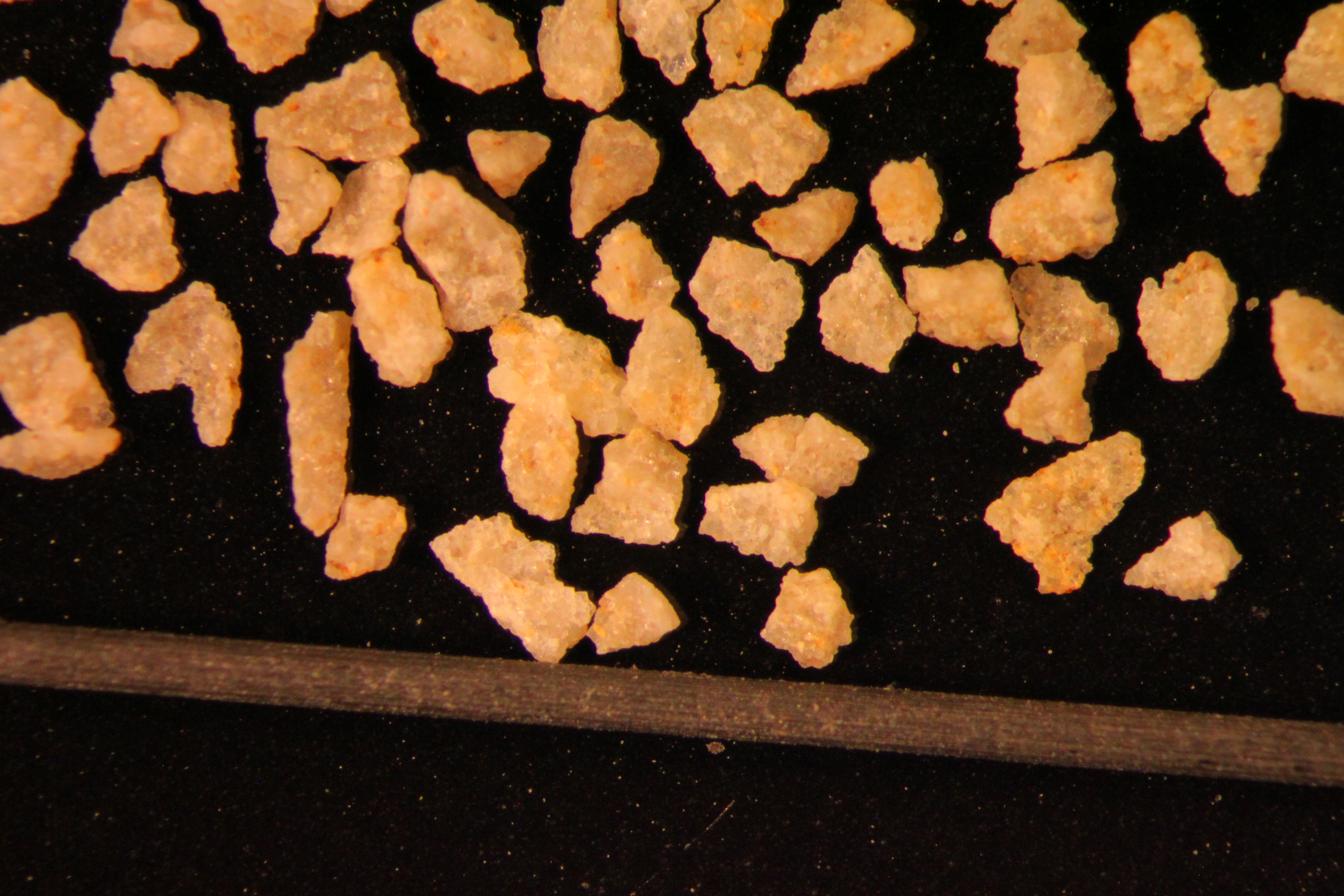

30 296.1 312.2 16.1 13.45 %
40 285.6 299.6 14 11.70 %
50 264 274.5 10.5 8.77 %
60 260.3 265.1 4.8 4.01 %
70 284 287.4 3.4 2.84 %
140 253.1 271.1 18 15.04 %
pan 355.3 372.4 17.1 14.29 % No photo available
Totals 119.60 99.92 %
Error (Init/Final Mass) 0.08 %
Lab Results
Sphericity
Roundness
First Primary 20
Second Primary 40

Available Documents

    View document [CFD_02_SV_14_PRECRUSH0662015_8_17_10_15_55.pdf]
