The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name ML-1 Site Name MEDICINE LAKE
Latitude 48.445 Longitude -104.3208
Geomethod UNKNOWN Datum NAD83
Elevation 2045 Township 31N
County SHERIDAN Range 57E
100K Quad CULBERTSON Section 16
24K Quad CAPENEYS LAKE Quarter Section
Sample Taken YES
Sample Date 9/5/2013 Formation Name Eolian sand (Qe)
Sampler Name MARC KLOKER Sampler Notes
Thickness Extent
References

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ WITH OTHER MINERALS
Pre Wash Weight (g) Post Wash Weight (g)
Material Notes

Sieving Results

Reported Sample Weight (g): 245.59
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 328.93 328.99 0.06 0.02 % No photo available
20 305.67 305.87 0.2 0.08 %
30 295.65 297.56 1.91 0.78 %
40 285.36 296.39 11.03 4.49 %
50 263.48 309.09 45.61 18.57 %

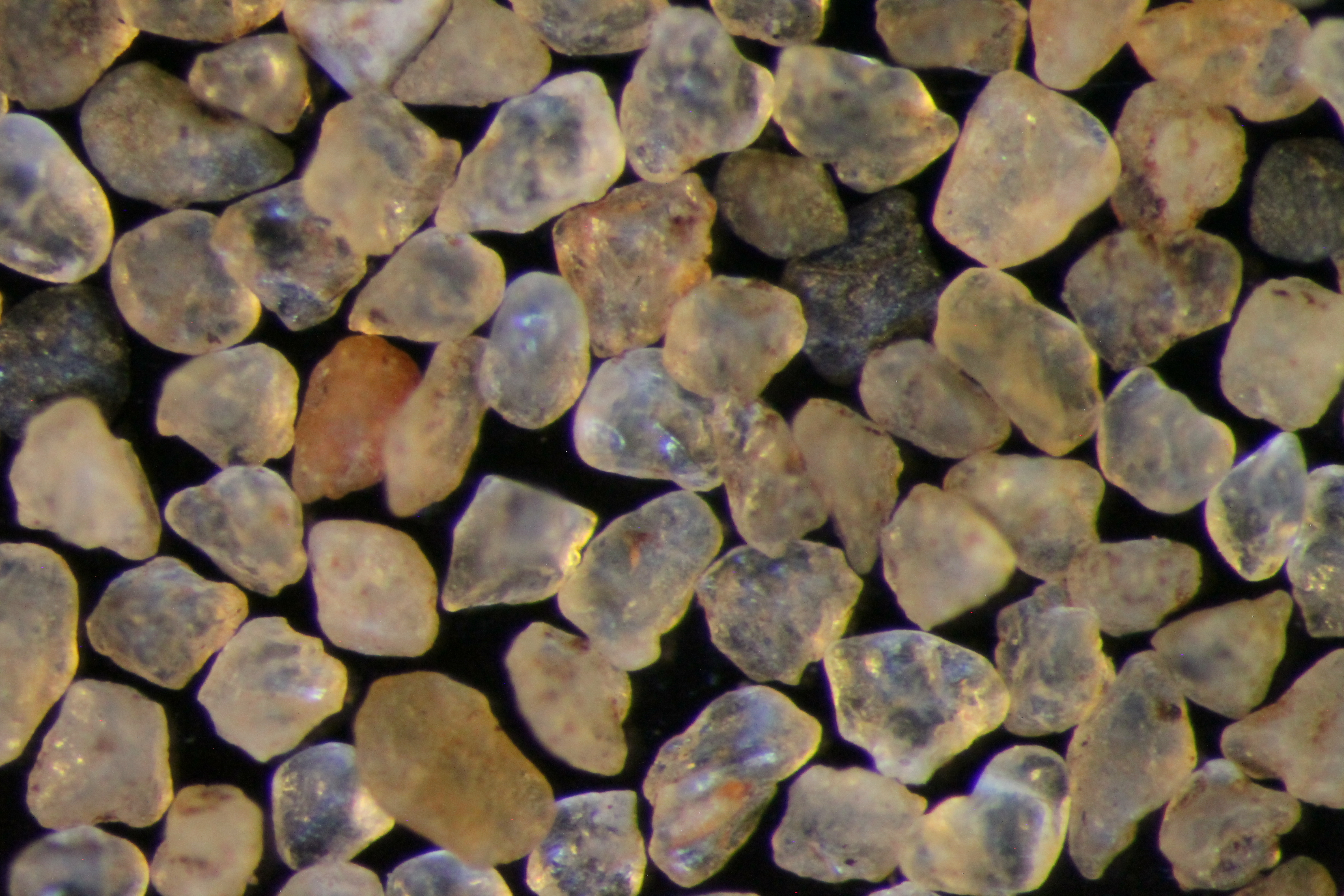

60 260.02 310.39 50.37 20.51 %

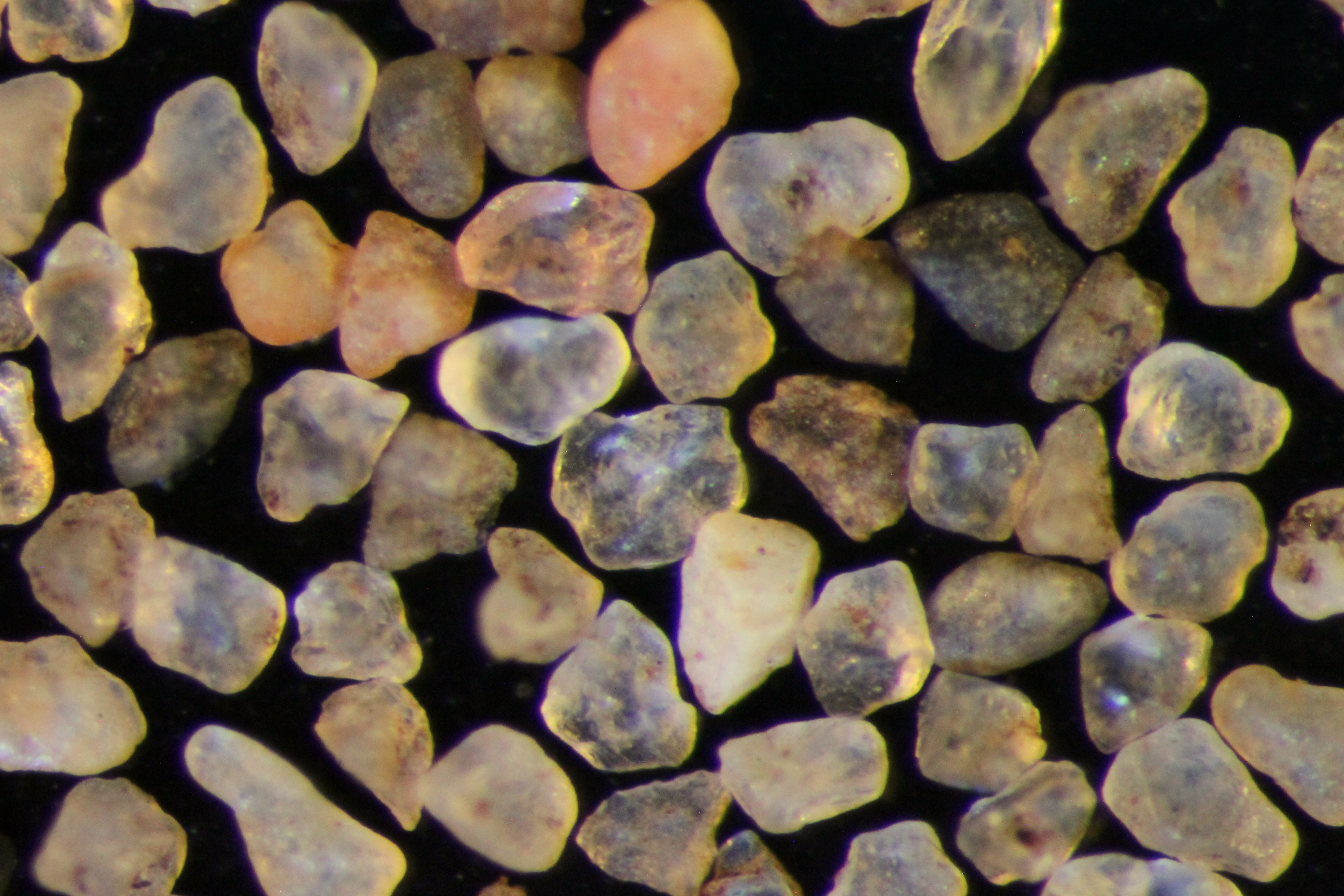

70 283.85 327.94 44.09 17.95 %
140 252.92 343.07 90.15 36.71 %
pan 354.94 357.1 2.16 0.88 % No photo available
Totals 245.58 100.00 %
Error (Init/Final Mass) 0.00 %
Lab Results
Sphericity
Roundness
First Primary 40
Second Primary 70

Available Documents

    View document [ML_01_PRECRUSH2112015_12_28_11_26_49.pdf]
