The data displayed below were collected during a joint project between the following departments at Montana Tech of The University of Montana: Geophysical Engineering and the Montana Bureau of Mines and Geology. The samples represent sandstones collected and analyzed for their potential use as proppant material.

General Information
Sample Name B35-2 Site Name B35-JG
Latitude 48.03049 Longitude -106.31563
Geomethod NAV-GPS Datum WGS84
Elevation 2680 Township 26N
County MCCONE Range 42E
100K Quad GLASGOW Section 4
24K Quad MILK RIVER HILLS Quarter Section DD
Sample Taken YES
Sample Date 8/29/2013 Formation Name Fox Hills Formation (Kfh)
Sampler Name JAY GUNDERSON Sampler Notes RADIO TOWER HILL 2 MI EAST OF FT PECK SPILLWAY | OVERLYING "CAP UNIT", RED-BROWN SOFT SS
Thickness 10 Extent 300
References

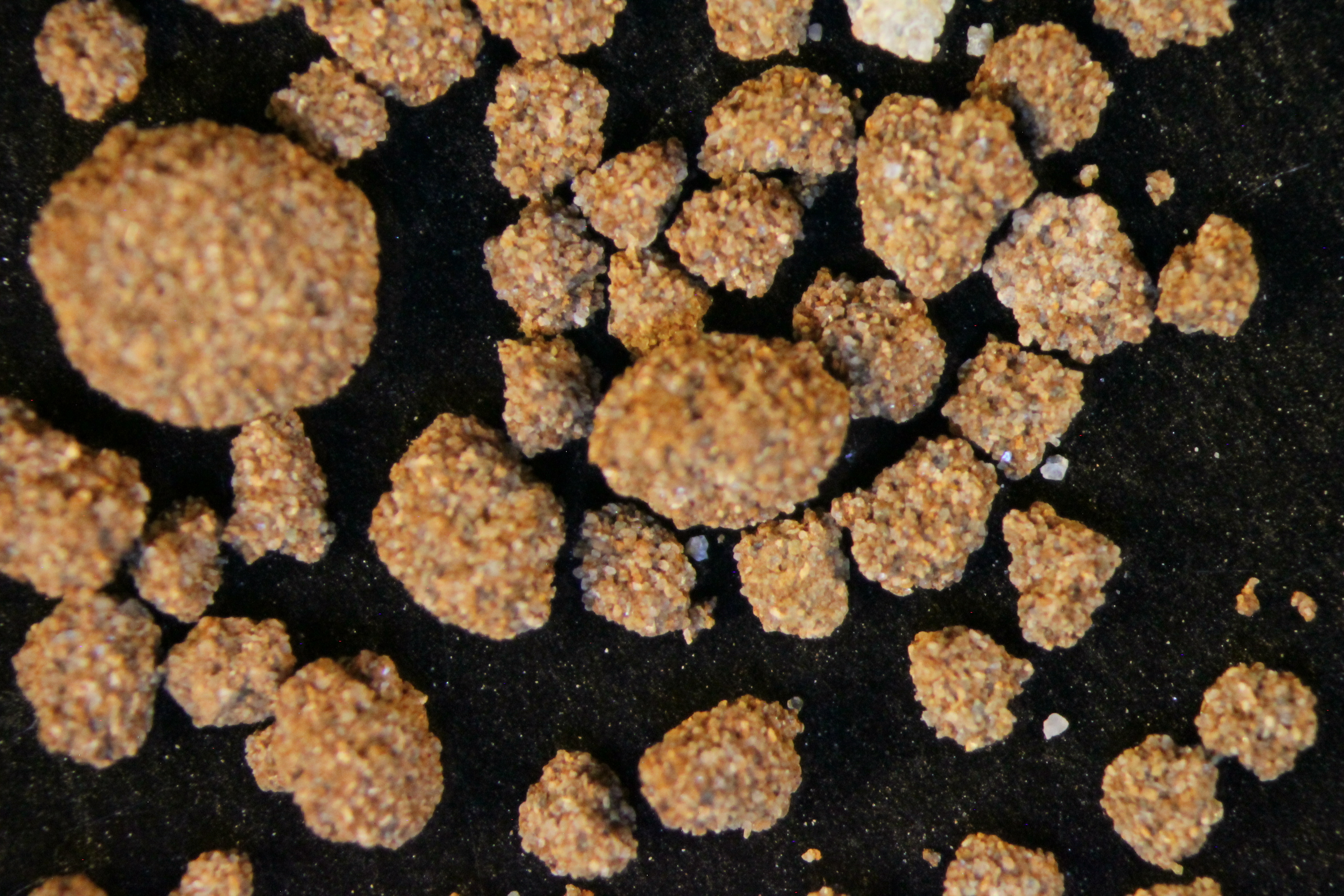

Site Photographs
Sample Characteristics
Meets API Minimum Standards Minerology
NO QUARTZ
Pre Wash Weight (g) Post Wash Weight (g)
Material Notes
USED CONE CRUSHER

Sieving Results

Reported Sample Weight (g): 179.14
Mesh Empty (g) After (g) Mass of Sample (g) Percent of Total Photo
16 328.95 329.16 0.21 0.12 %
20 305.69 306.53 0.84 0.47 %
30 295.71 297.54 1.83 1.02 %
40 285.34 288.65 3.31 1.85 %
50 263.61 269.05 5.44 3.04 %
60 260.18 264.27 4.09 2.28 %
70 283.92 288.07 4.15 2.32 %
140 252.99 361.2 108.21 60.41 %
pan 354.96 405.85 50.89 28.41 % No photo available
Totals 178.97 99.91 %
Error (Init/Final Mass) 0.09 %
Lab Results
Sphericity 0.6
Roundness 0.59
First Primary 70
Second Primary 140

Available Documents

    View document [B35-02_5K0332015_8_17_11_3_20.pdf]
    View document [B35_02_SV_14_CRUSH6K1492015_8_17_11_3_27.pdf]
    View document [B35_02_SV_14_PRECRUSH1862016_1_20_17_14_38.pdf]
    View document [B35_02_SV_14_SPHERE_ROUND1872016_1_20_17_14_43.pdf]
